The Right Touch Controller for Small to Large Screens
From 7" up to 75"
Up to 20mm Glass Thickness
Ready for Harsh Environments
10-Finger Multi-touch Capability
Fast Response
XTR-Shield Plus for Noise Filtering
The Right Touch Controller for Small to Large Screens
The Right Touch Controller for Small to Large Screens
From 7" up to 75"
Up to 20mm Glass Thickness
Ready for Harsh Environments
10-Finger Multi-touch Capability
Fast Response
XTR-Shield Plus for Noise Filtering
Choose the Right Solution
Choose the Right Solution
SKIN ZEETO
Built for industrial, medical, vending and compact touch applications operating in harsh environments.
SKIN ZEETO Max
Designed for large-format kiosks, transportation systems and interactive displays requiring robust touch performance.

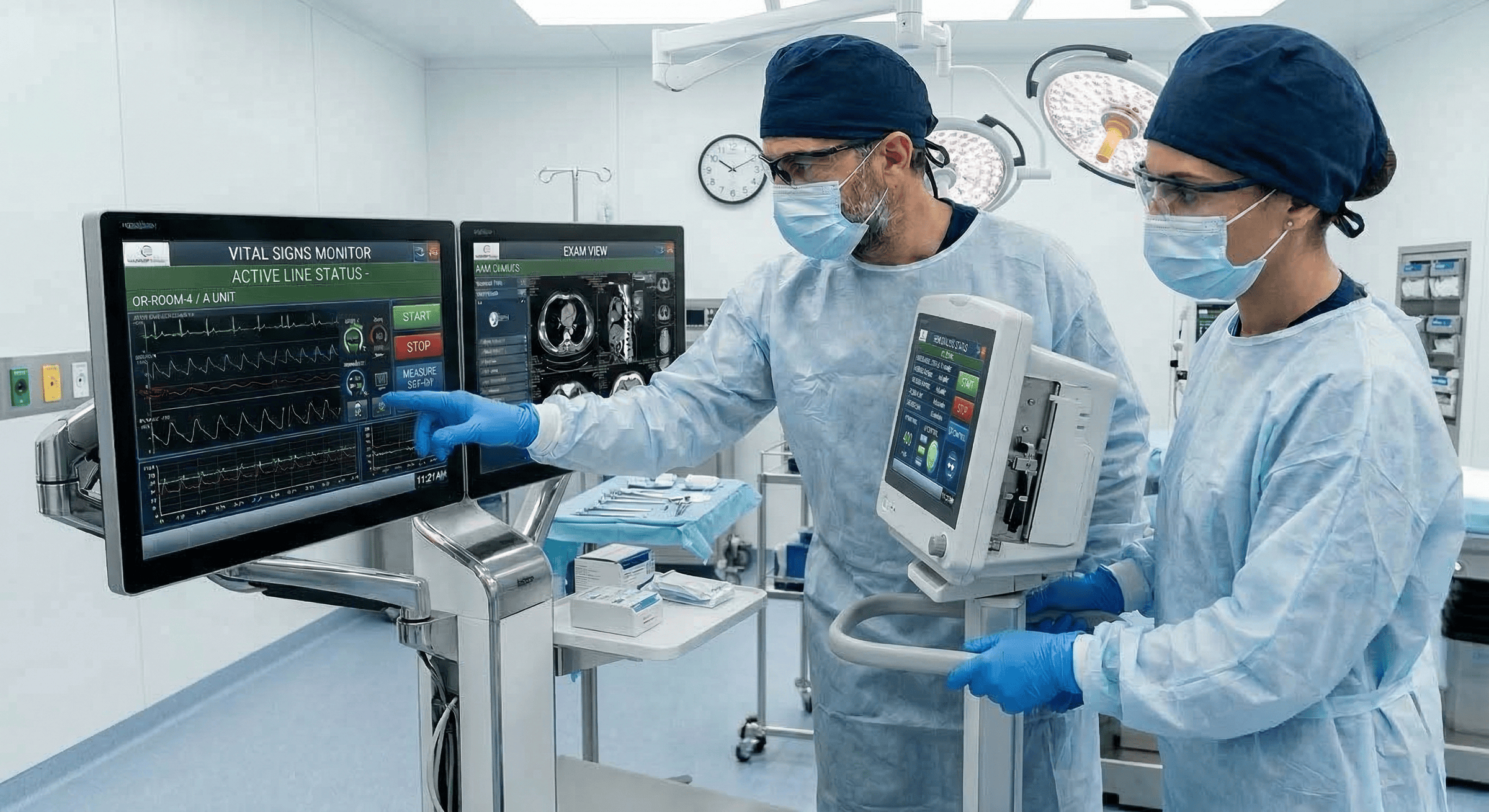

Fast & Accurate Touch Performance
Fast & Accurate Touch Performance
Engineered for speed and precision, SKIN ZEETO delivers an exceptional user experience with 7ms touch response and support for 10 simultaneous touch points.
Designed for both finger and glove operation, the SKIN ZEETO ensures reliable performance in environments where speed, accuracy and usability are critical.

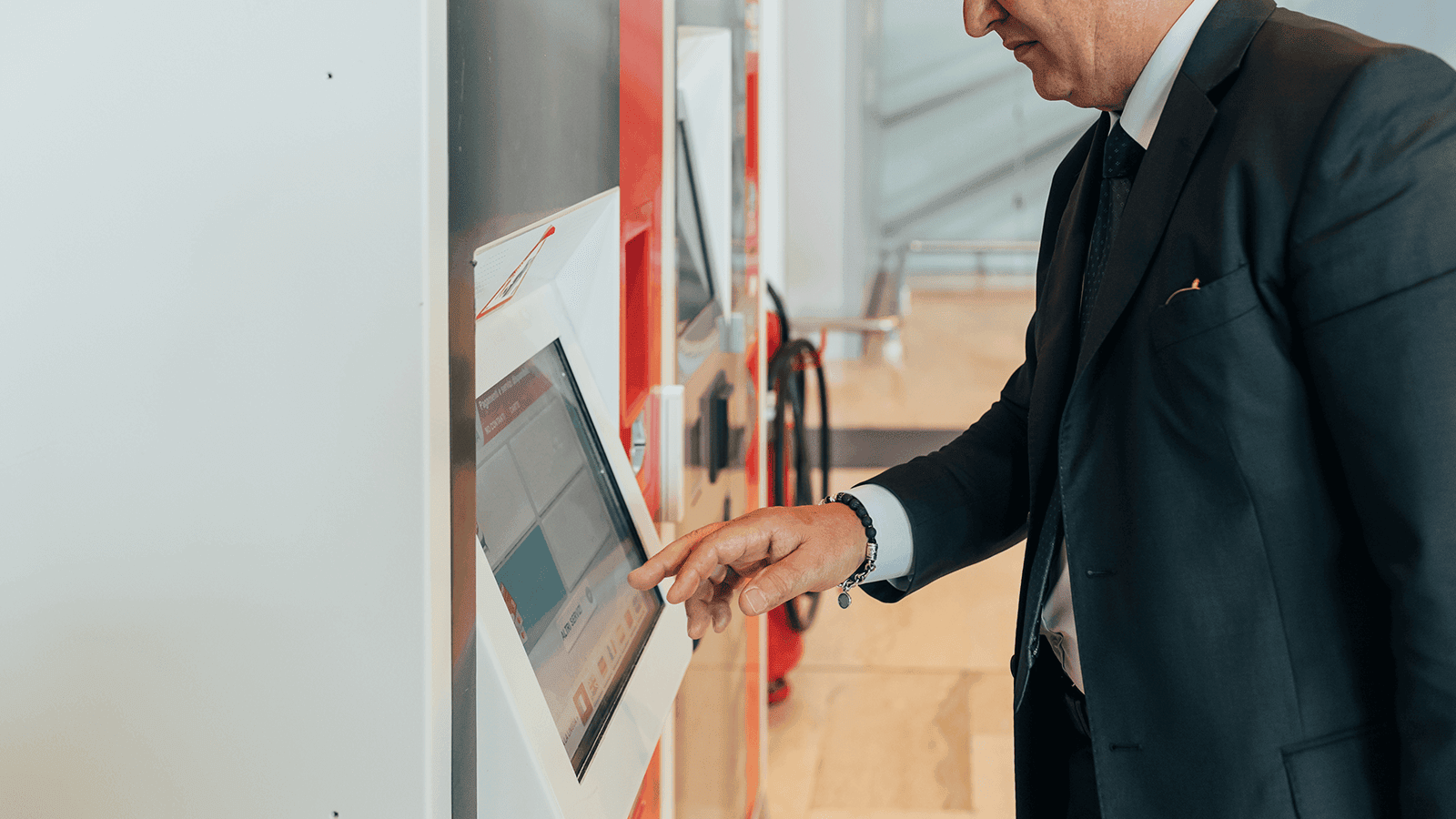

From medical equipment and factory control systems to self-service kiosks and transportation applications, every interaction remains precise, responsive and dependable.
Fast & Accurate Touch Performance
Fast & Accurate Touch Performance
Engineered for speed and precision, SKIN ZEETO delivers an exceptional user experience with 7ms touch response and support for 10 simultaneous touch points.
From medical equipment and factory control systems to self-service kiosks and transportation applications, every interaction remains precise, responsive and dependable.

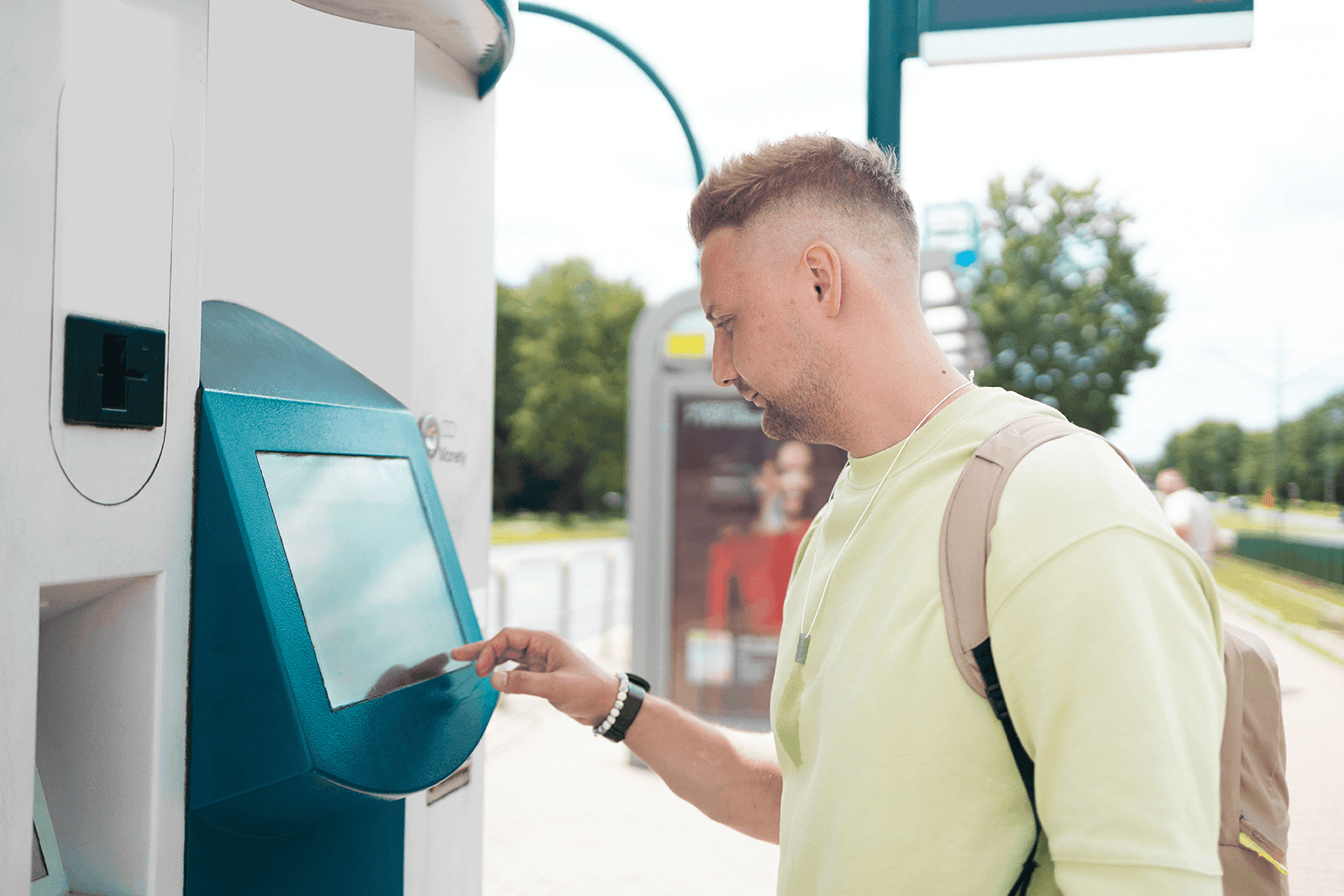

Ready for Harsh Environments
Ready for Harsh Environments

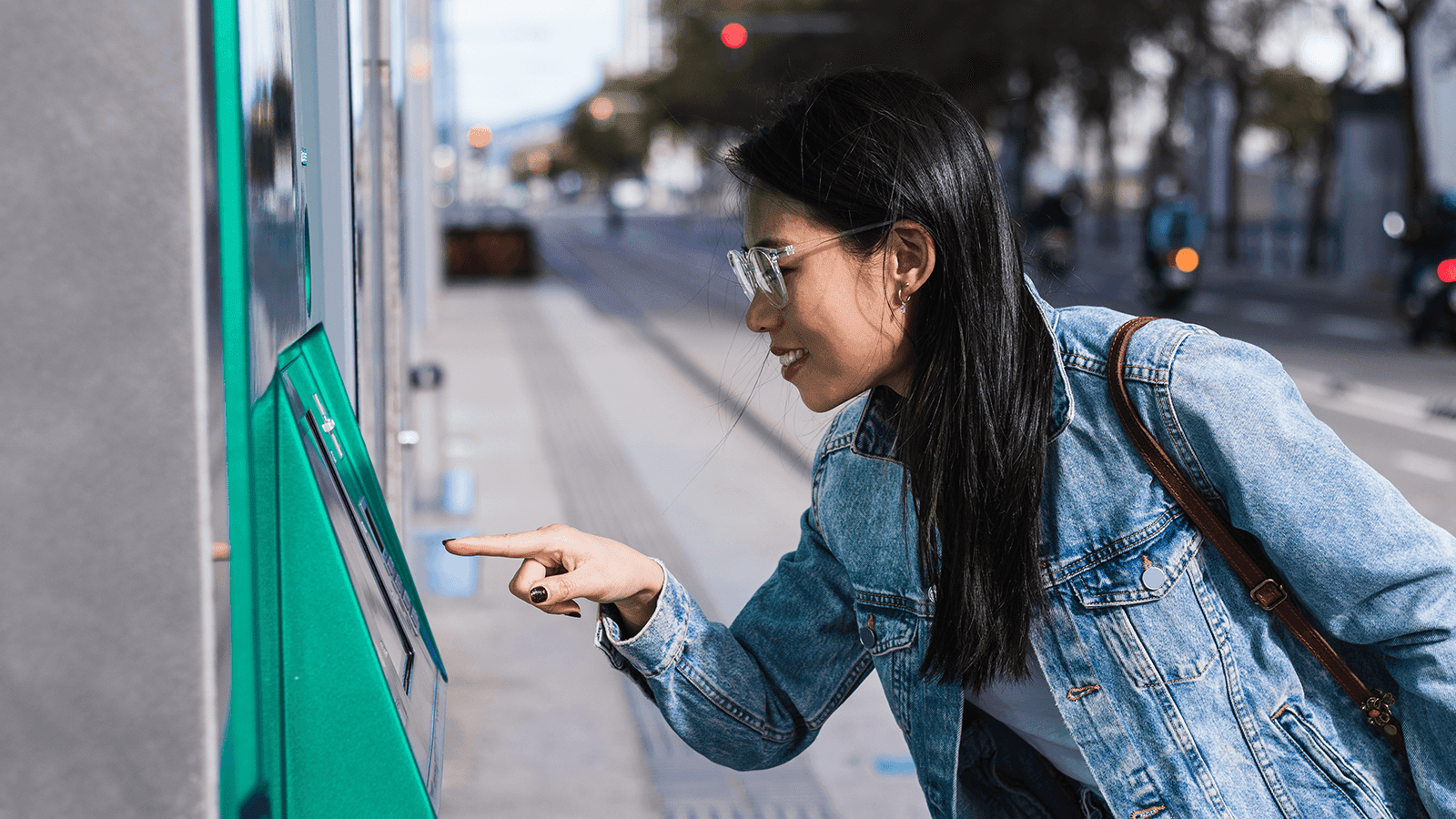

Designed to perform in the most challenging settings, SKIN ZEETO is built to withstand -20°C to 70°C", rain, dust, ice and UV exposure. Its robust build ensures reliable operation in outdoor kiosks, industrial machinery and other installations where exposure to the elements is expected.
Supporting glass thicknesses up to 20mm, it’s ideal for applications that require additional protection or insulation without compromising responsiveness or accuracy.
Coupled with DISPLAX XTR-Shield Plus technology, it actively filters out noise and interference from surrounding electronics - ensuring stable, uninterrupted performance even in demanding high-EMI environments.
Ready for Harsh Environments
Ready for Harsh Environments
Flexible Integration for Diverse Applications
Flexible Integration for Diverse Applications
SKIN ZEETO was designed with integration flexibility at its core, enabling system designers and manufacturers to deploy the same touch technology platform across a wide variety of applications and display sizes.
Supporting display sizes from 7" to 75", combines compact and large-format touch solutions while maintaining consistent performance, reliability and ease of integration.
Whether integrating a compact industrial HMI, a medical device, a self-service kiosk or a large interactive display, SKIN ZEETO solutions provide a flexible foundation for demanding touch applications.
Flexible Integration for Diverse Applications
Flexible Integration for Diverse Applications
Configure with Precision: DISPLAX Connect
Configure with Precision: DISPLAX Connect
Every SKIN ZEETO controller comes bundled with DISPLAX Connect - our powerful and intuitive configuration software that gives you full control over your touch setup.
Whether you’re fine-tuning for industrial machinery, ticketing kiosks, or outdoor applications, DISPLAX Connect allows you to communicate directly with the controller, adjust settings in real-time, and create touch presets tailored to your hardware and use case.
Configure with Precision: DISPLAX Connect
Configure with Precision: DISPLAX Connect
Every SKIN ZEETO controller comes bundled with DISPLAX Connect - our powerful and intuitive configuration software that gives you full control over your touch setup.
Whether you’re fine-tuning for industrial machinery, ticketing kiosks, or outdoor applications, DISPLAX Connect allows you to communicate directly with the controller, adjust settings in real-time, and create touch presets tailored to your hardware and use case.
Use Cases
Use Cases
Typical Applications
Self-Service Kiosks
Check-In
EV Chargers
Industrial
Medical

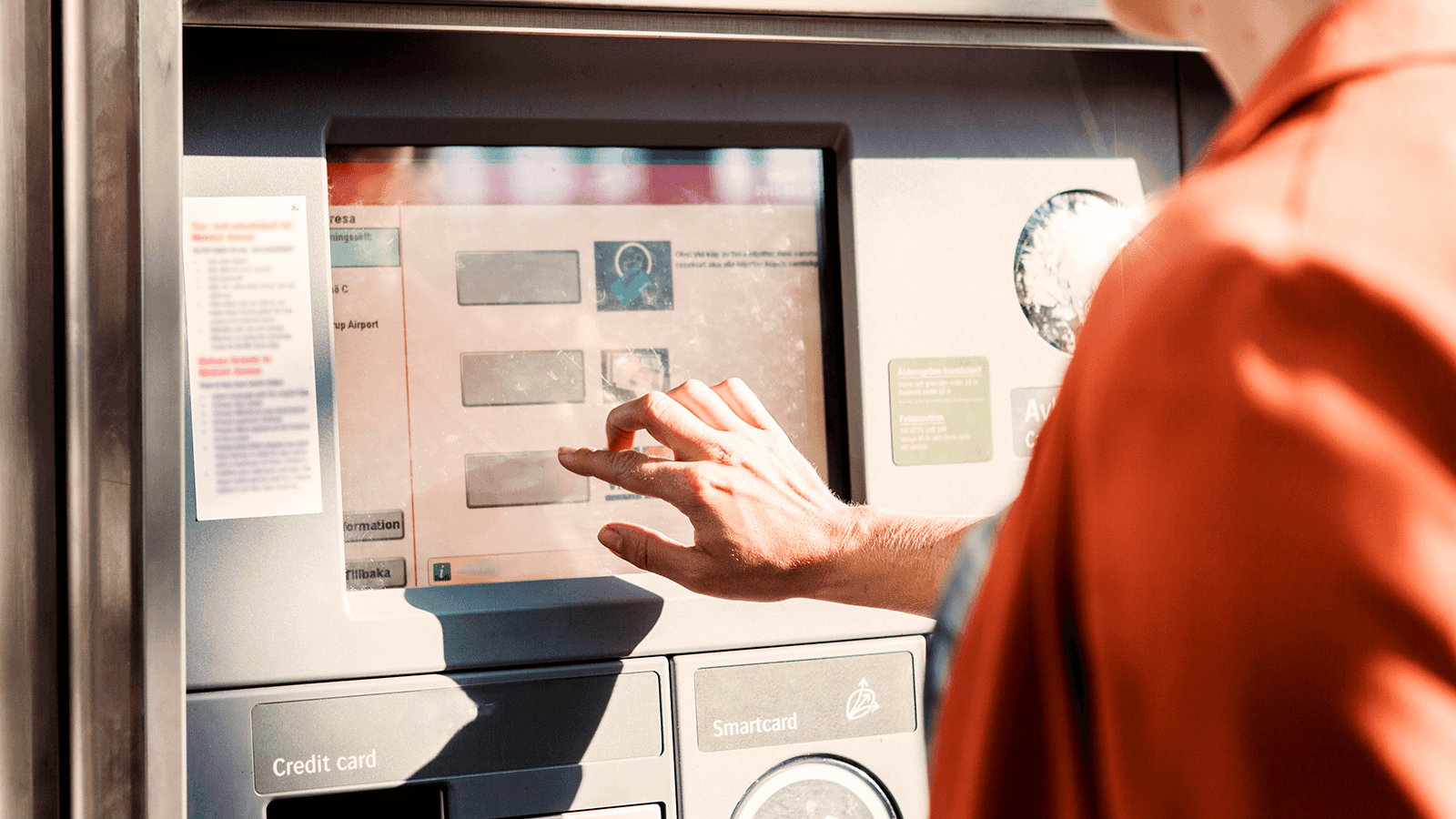

Payments
Typical Applications
Self-Service Kiosks
Check-In
EV Chargers
Industrial
Medical
Payments

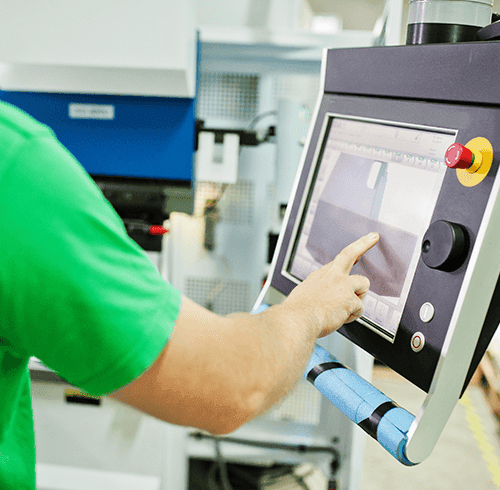

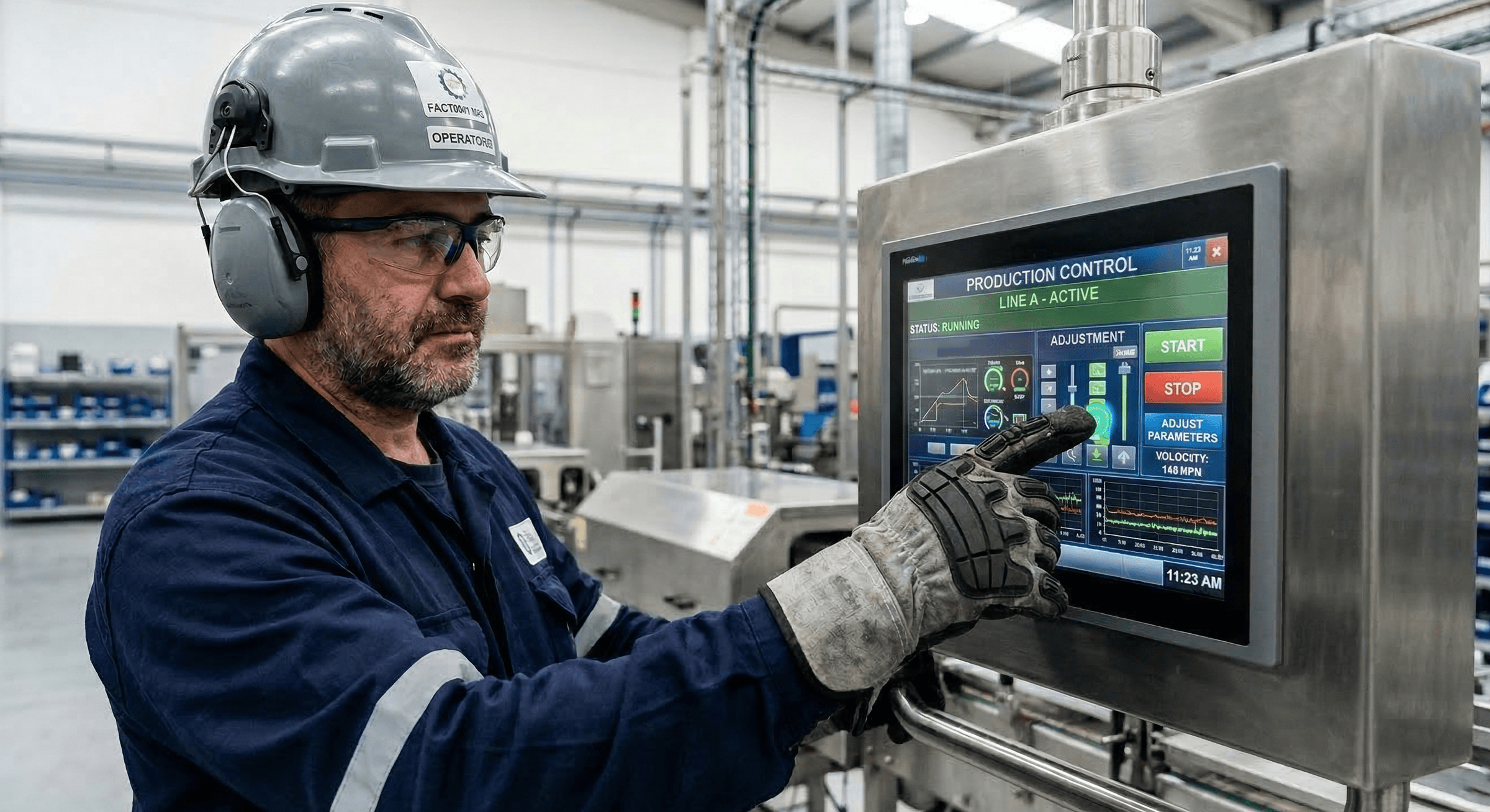

Built for

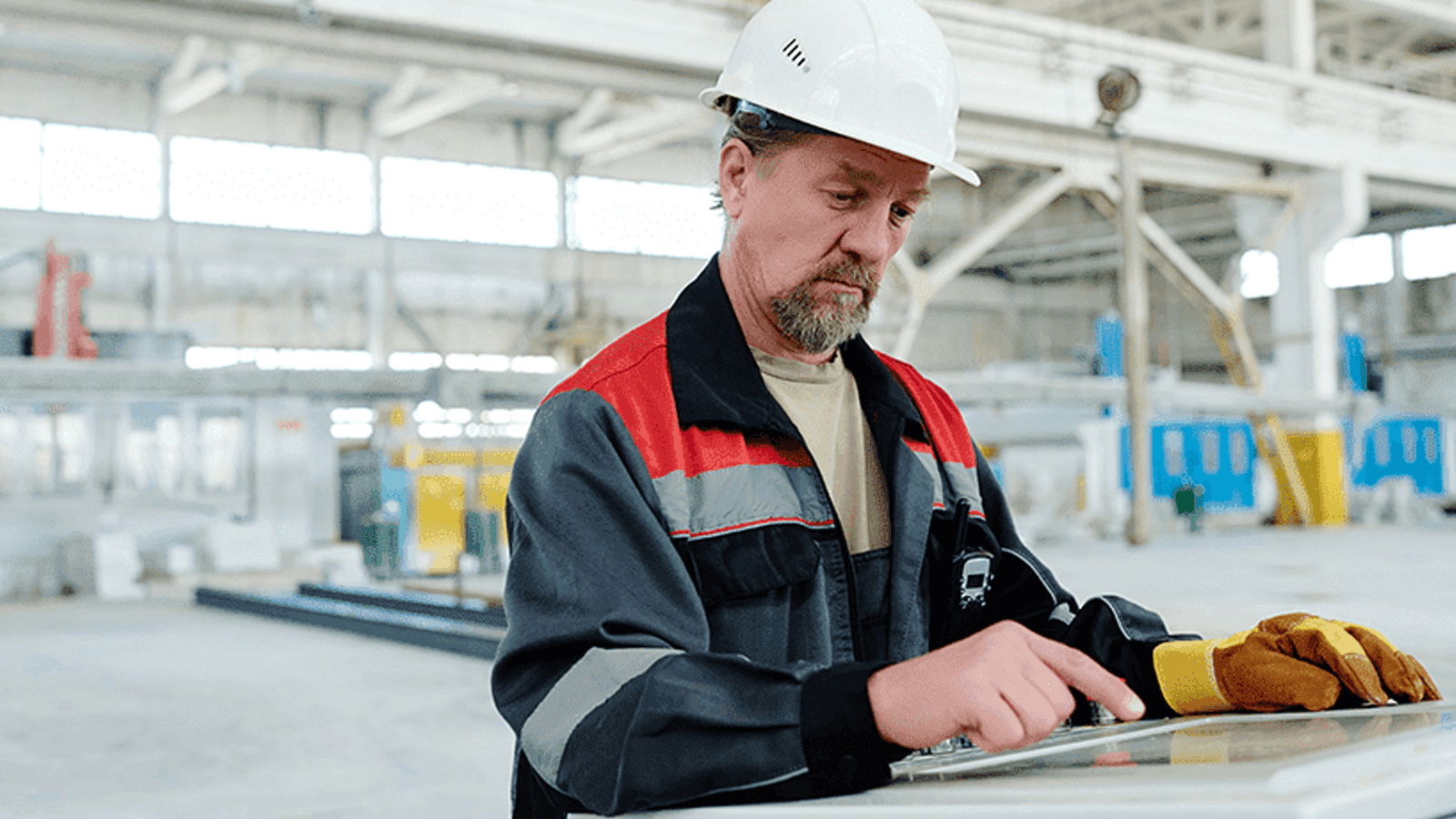

Industrial Machinery
Precision and durability for demanding control environments.

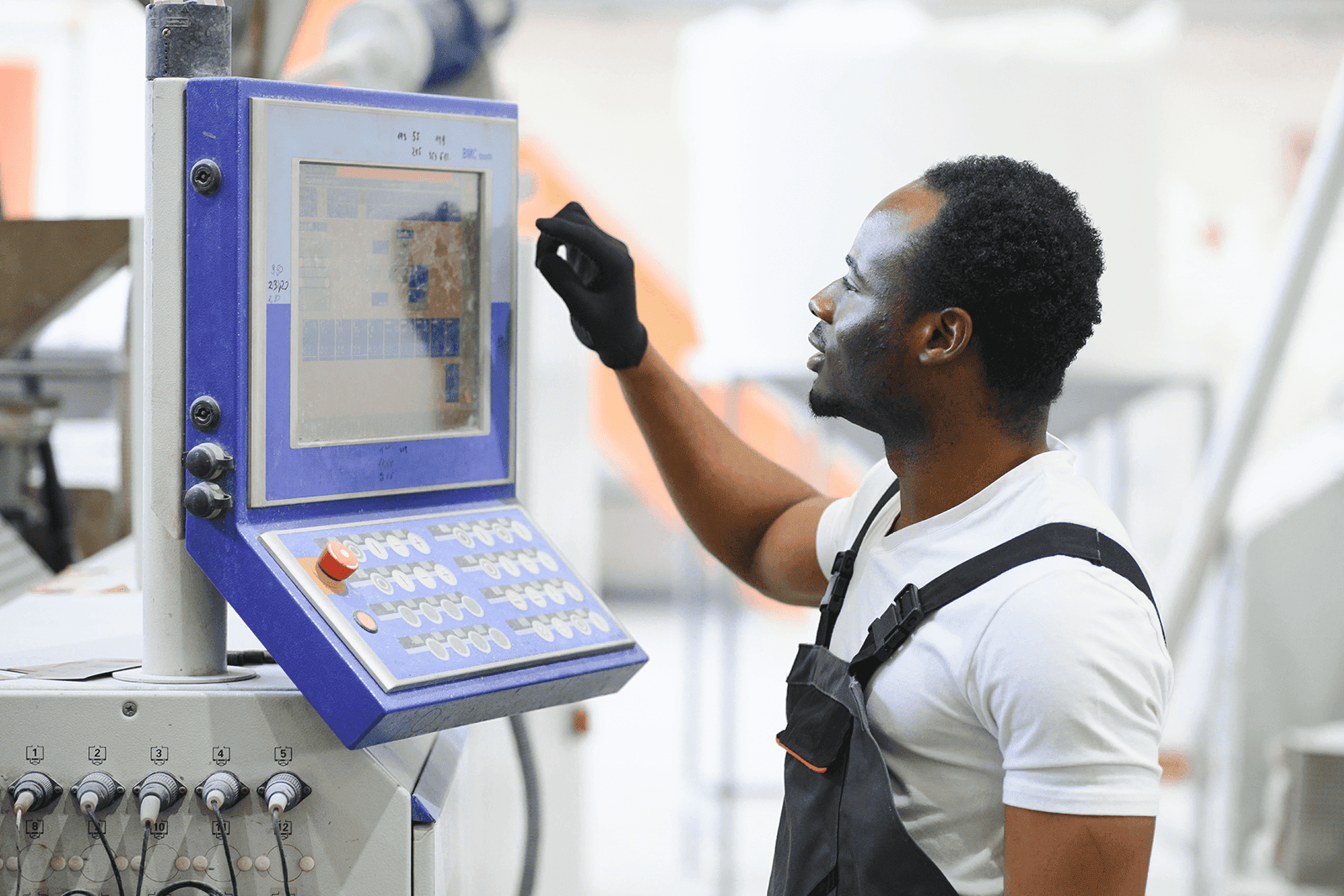

SKIN ZEETO was designed with industrial machinery in mind - where touch performance must remain stable despite harsh surroundings. Whether it's integrated into a control panel or an HMI display, ZEETO ensures fast, accurate response, even when operators wear gloves.
Its ability to work with glass thicknesses up to 20mm, including setups with air gaps between multiple glass layers, allows for extra protection without compromising touch sensitivity. Combined with custom glass options and tailored sensor designs, it offers maximum flexibility for OEMs and system integrators who need to meet strict industrial requirements.
Built for
Industrial Machinery
Built for
Industrial Machinery
Precision and durability for demanding control environments.
SKIN ZEETO was designed with industrial machinery in mind - where touch performance must remain stable despite harsh surroundings. Whether it's integrated into a control panel or an HMI display, ZEETO ensures fast, accurate response, even when operators wear gloves.
Its ability to work with glass thicknesses up to 20mm, including setups with air gaps between multiple glass layers, allows for extra protection without compromising touch sensitivity. Combined with custom glass options and tailored sensor designs, it offers maximum flexibility for OEMs and system integrators who need to meet strict industrial requirements.

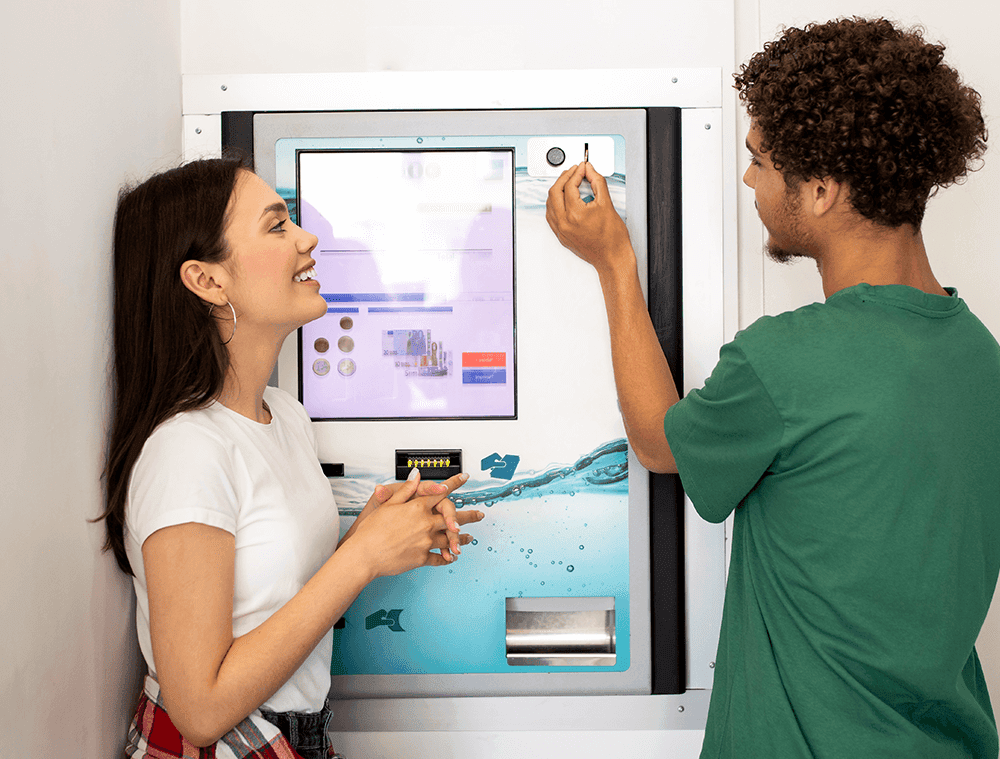

Vending and Ticketing
Public-ready performance, indoor or outdoor.
SKIN ZEETO delivers reliable and durable touch performance in public environments like transit stations or streets. Built to handle thick protective glass, it resists vandalism and works reliably in rain, dust, UV exposure, and -20°C to 70°C.
With custom sensor and glass options, it adapts easily to any kiosk or enclosure - ensuring seamless interaction whether indoors or outdoors, all day long.
Vending and Ticketing
Public-ready performance, indoor or outdoor.
SKIN ZEETO delivers reliable and durable touch performance in public environments like transit stations or streets. Built to handle thick protective glass, it resists vandalism and works reliably in rain, dust, UV exposure, and -20°C to 70°C.
With custom sensor and glass options, it adapts easily to any kiosk or enclosure - ensuring seamless interaction whether indoors or outdoors, all day long.
True HID Multitouch
Native single and multitouch support from OS
Windows
Chrome OS
Android
Raspberry Pi
Ubuntu
webOS
macOS
Tizen OS
True HID Multitouch
Native single and multitouch support from OS
Windows
Android
Ubuntu
macOS
Chrome OS
Raspberry Pi
webOS
Tizen OS
HID Mouse Emulation
Digital Signage Players
Windows Embedded
BrightSign
Smart Signage Platform
Spinetix
HID Mouse Emulation
Digital Signage Players
Windows Embedded
BrightSign
Smart Signage Platform
Spinetix
Compare our SKIN Touch Sensors
| SKIN ZEETO | SKIN ZEETO Max | SKIN ULTRA | SKIN FIT | |
| Positioning | Harsh & demanding environments | Harsh & demanding environments | Premium large-format performance | Versatile performance & value |
| Size range | 7"-24" | 24.1"-75" | 30"-135" | 20"-135" |
| Simultaneous touches | Up to 10 | Up to 10 | Up to 100 | Up to 40 |
| Response time | 7 ms | 7 ms | 5 ms | 5 ms |
| High Resolution | — | — | ✓ | — |
| Aspect Ratio | Custom designed sensor | Custom designed sensor | 16:9, 4:3, Custom formats | 16:9, 4:3, Custom formats |
| Palm & Arm detection | — | — | ✓ Palm & Arm detection | ✓ Palm detection |
| Glass thickness | Up to 20 mm | Up to 20 mm | Up to 10 mm | Up to 15 mm |
| Touch Accuracy | <1mm in 15" with 4mm glass | <1mm in 15" with 4mm glass | 0.26% of sensor diagonal | 0.53% of sensor diagonal |
| Finger Separation | — | — | 1,30% of sensor diagonal | 2,64% of sensor diagonal |
| Outdoor use | ✓ | ✓ | ✓* | ✓ |
| Designed for demanding environments | ✓ | ✓ | ✓* | ✓ |
| Object Recognition | — | — | ✓ | ✓ |
| Custom shapes / formats | Custom formats | Custom formats | Fully customisable | Fully customisable |
| Adhesive | Permanent or Removable | Permanent or Removable | Permanent | Permanent or Removable |
| Substrate | Glass and other non-conductive materials | Glass and other non-conductive materials | Float Glass, Gorilla Glass | Float Glass, Gorilla Glass |
| Interface | USB HID (default); SPI, I2C, SERIAL TTL/RS232 (on request); Industrial Connector (on request) | USB HID (default); SPI, I2C, SERIAL TTL/RS232 (on request); Industrial Connector (on request) | HID | USB HID, UART-TTL |
* SKIN ULTRA: depends on the glass configuration; Extra Clear or Anti-Glare SKIN GLASS is suitable for demanding outdoor environments.
Compare our SKIN Touch Sensors
SKIN ZEETOSKIN ZEETO Max
SKIN ULTRASKIN FIT
* SKIN ULTRA: depends on the glass configuration; Extra Clear or Anti-Glare SKIN GLASS is suitable for demanding outdoor environments.
Specifications & Support
Technical Specifications
Help Center
Specifications & Support
Technical Specifications
Help Center
Certifications
Conformité Européenne (CE)
Federal Communications Commission (FCC)
Restriction of Hazardous Substances (RoHS)
Certifications
Conformité Européenne (CE)
Federal Communications Commission (FCC)
Restriction of Hazardous Substances (RoHS)
