SKIN FIT

Performance & Versatility

Customizable solution up to 135” for indoor and outdoor touch kiosks, retail, vending, and other applications.

Flexible Touch Solution for Indoor and Outdoor

SKIN FIT is a great combination of price and performance. It’s a highly customizable and versatile projected capacitive touch sensor. It can go from 20” to 135” and have 40 simultaneous finger touches with great resolution, and it works with all major Operating Systems.

Custom size from 20'' to 135''

Up to 40 Finger Touches

High Touch Response of just 5ms

Ready for Harsh Environments

Palm Detection

Single USB Powered

Flexible Touch Solution for Indoor and Outdoor

SKIN FIT is a great combination of price and performance. It’s a highly customizable and versatile projected capacitive touch sensor. It can go from 20” to 135” and have 40 simultaneous finger touches with great resolution, and it works with all major Operating Systems.

Custom size from 20'' to 135''

Up to 40 Finger Touches

High Touch Response of just 5ms

Ready for Harsh Environments

Palm Detection

Single USB Powered

Highly Customizable

SKIN FIT is available in 16:9 as well as custom formats. The Flexible Printed Circuit (FPC) can be positioned on any side of the touch sensor and can be manufactured with a longer tail.

Ready to adapt to your request.

Highly Customizable

SKIN FIT is available in 16:9 as well as custom formats. The Flexible Printed Circuit (FPC) can be positioned on any side of the touch sensor and can be manufactured with a longer tail.

Ready to adapt to your request.

PCAP Touchscreens for Indoor and Outdoor Environments

The problems of the outdoor stands are extreme heat or cold, direct exposure to sun and UV, dust, rain and salt water, plus thousands of touches per day.

Therefore, the three main criteria in selecting the best products are: DURABILITY, FUNCTIONALITY and RELIABILITY.

With the best price/performance balance, SKIN FIT is the ideal solution for touch kiosks as well as multitouch tables for retail.

PCAP Touchscreens for Indoor and Outdoor Environments

The problems of the outdoor stands are extreme heat or cold, direct exposure to sun and UV, dust, rain and salt water, plus thousands of touches per day.

Therefore, the three main criteria in selecting the best products are: DURABILITY, FUNCTIONALITY and RELIABILITY.

With the best price/performance balance, SKIN FIT is the ideal solution for touch kiosks as well as multitouch tables for retail.

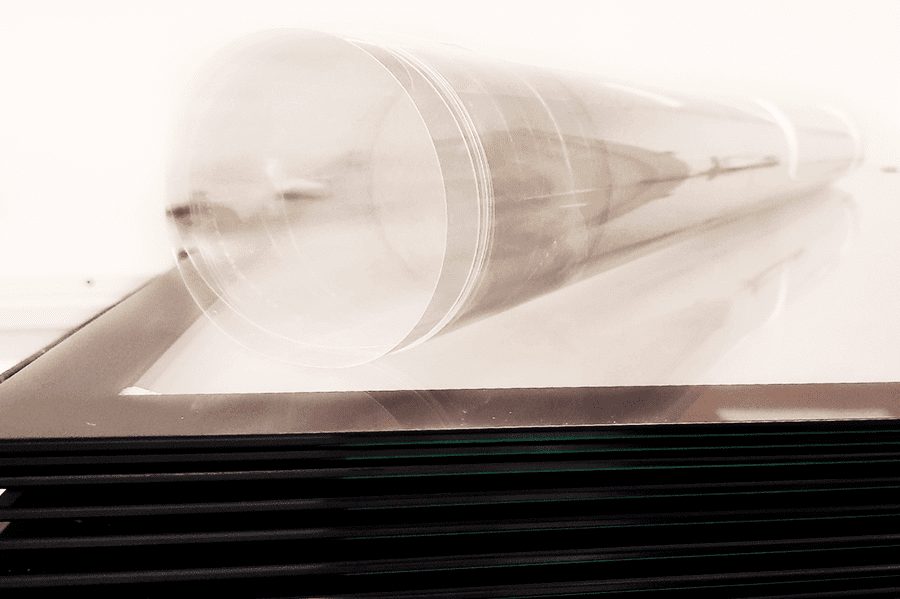

Fully Customizable Foil or Glass

DISPLAX multitouch sensors are wire-based sensor films designed to be used together with DISPLAX controllers and ready to be laminated in a non-conductive substract. They are UV and scratch resistant with the possibility of being fully customized:

Format

Variable width/height ratio

FPC tail position and length

Borders' width/height

Removable or permanent application

They can also be shipped already laminated with a glass of your choice and ready to be installed.

Fully Customizable Foil or Glass

DISPLAX multitouch sensors are wire-based sensor films designed to be used together with DISPLAX controllers and ready to be laminated in a non-conductive substract. They are UV and scratch resistant with the possibility of being fully customized:

Format

Variable width/height ratio

FPC tail position and length

Borders' width/height

Removable or permanent application

They can also be shipped already laminated with a glass of your choice and ready to be installed.

Use Cases

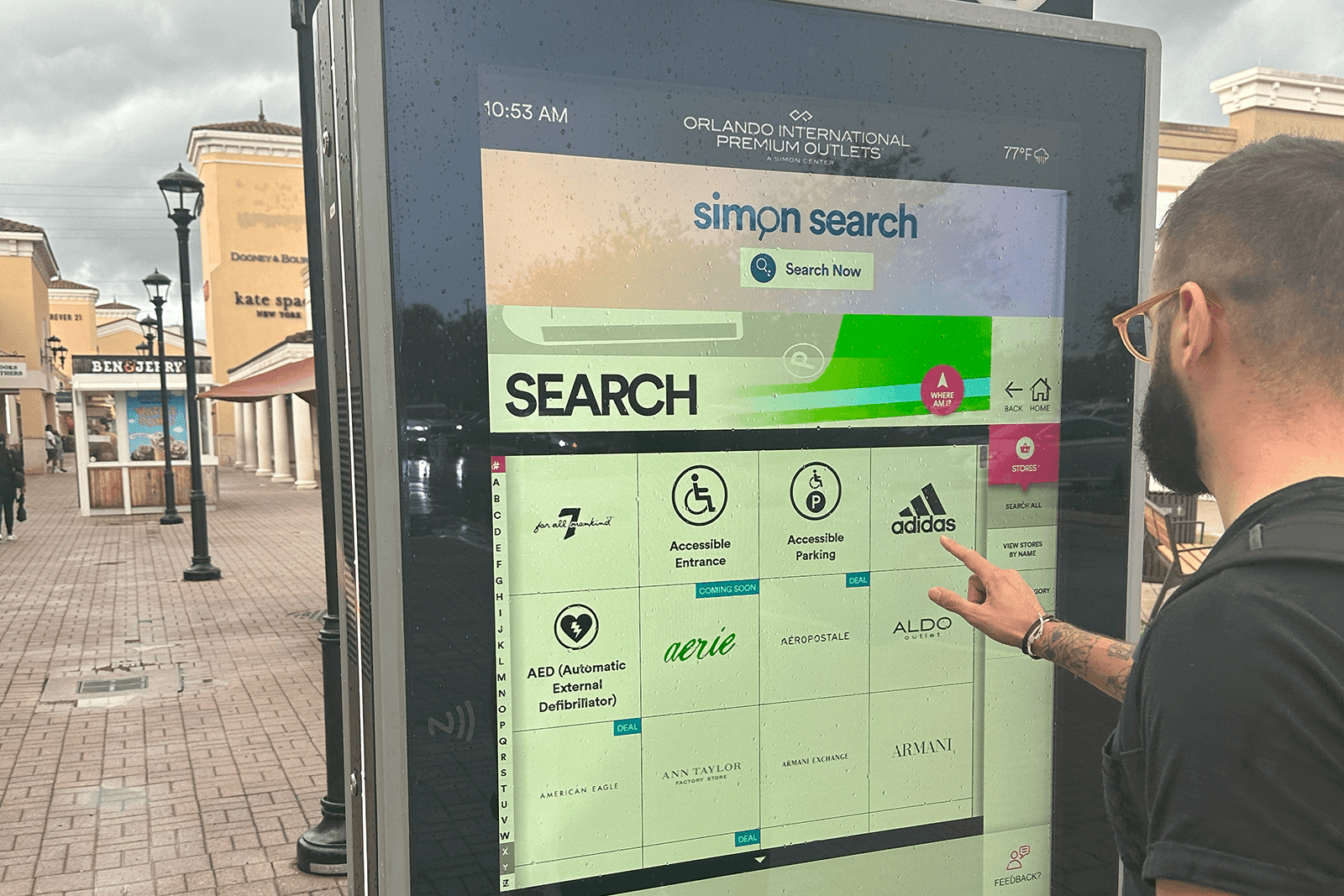

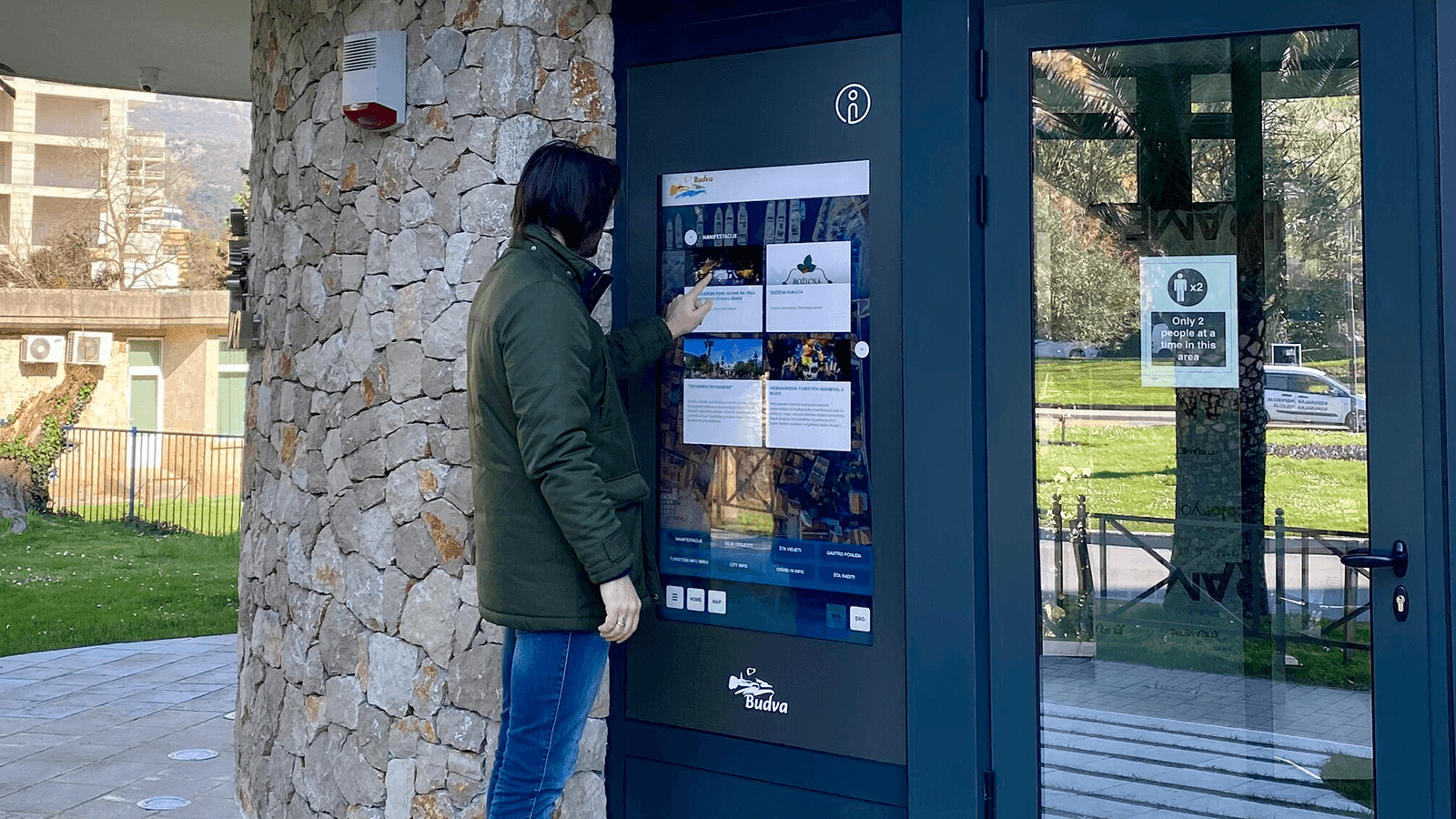

Outdoor PCAP Touch Kiosk powered by DISPLAX SKIN FIT

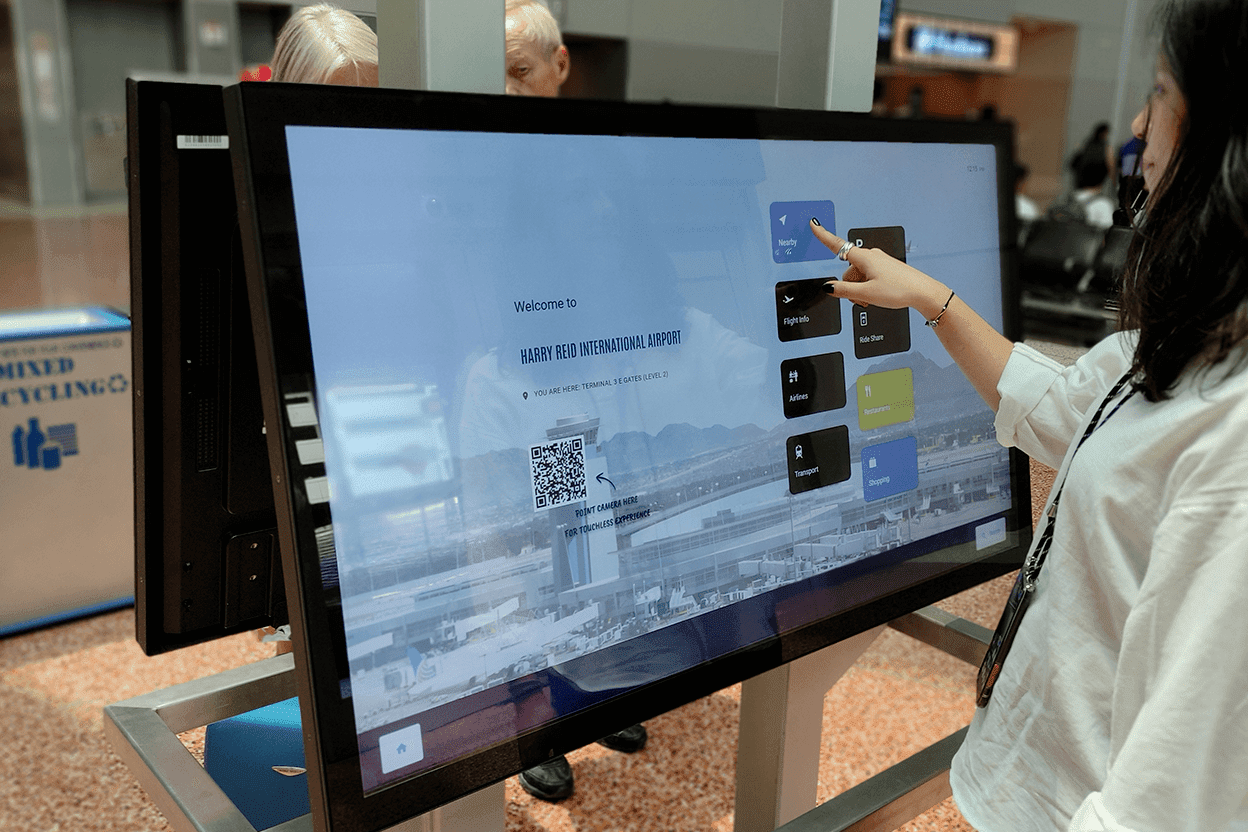

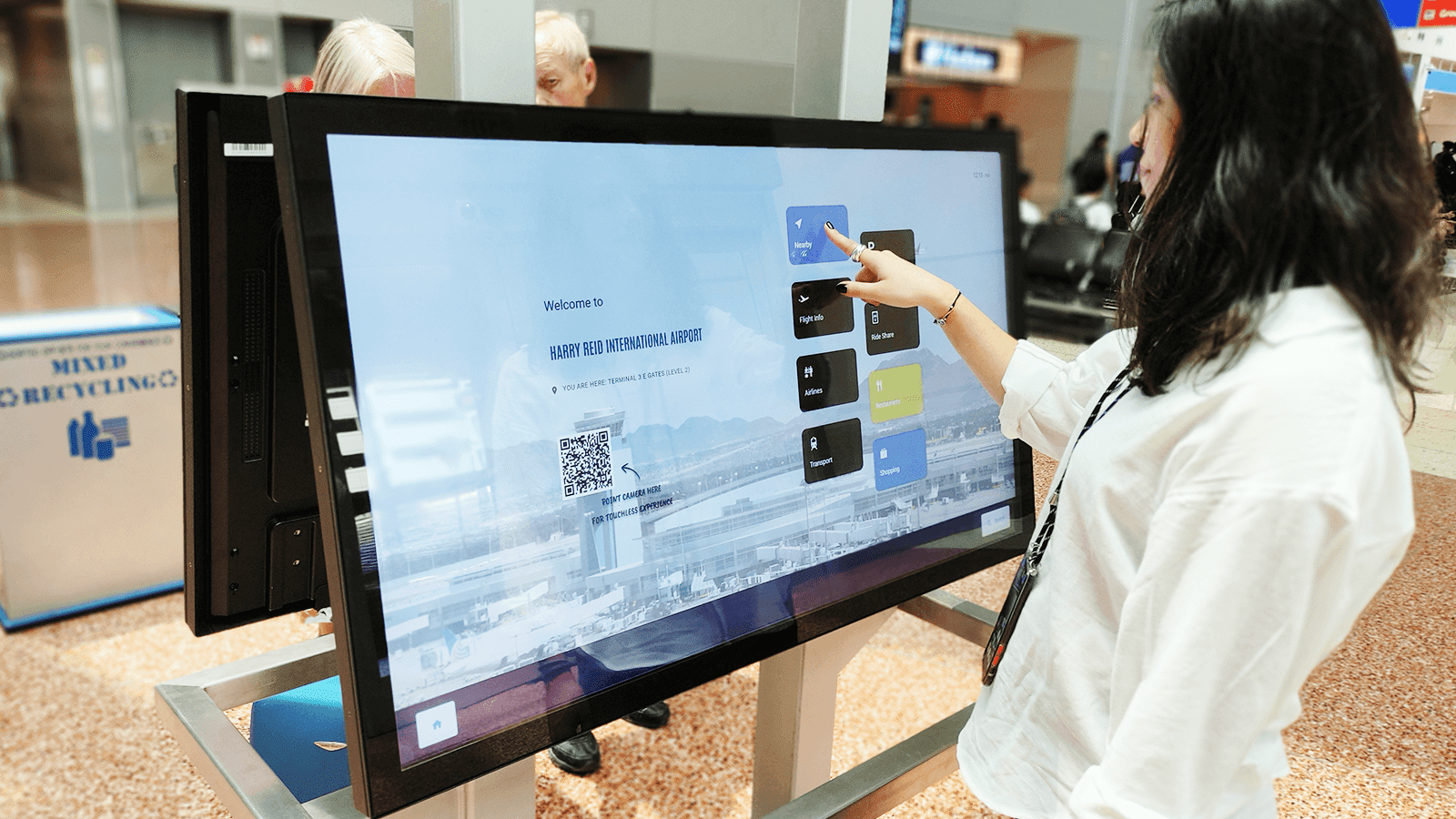

Indoor PCAP Touch Kiosk powered by DISPLAX SKIN FIT

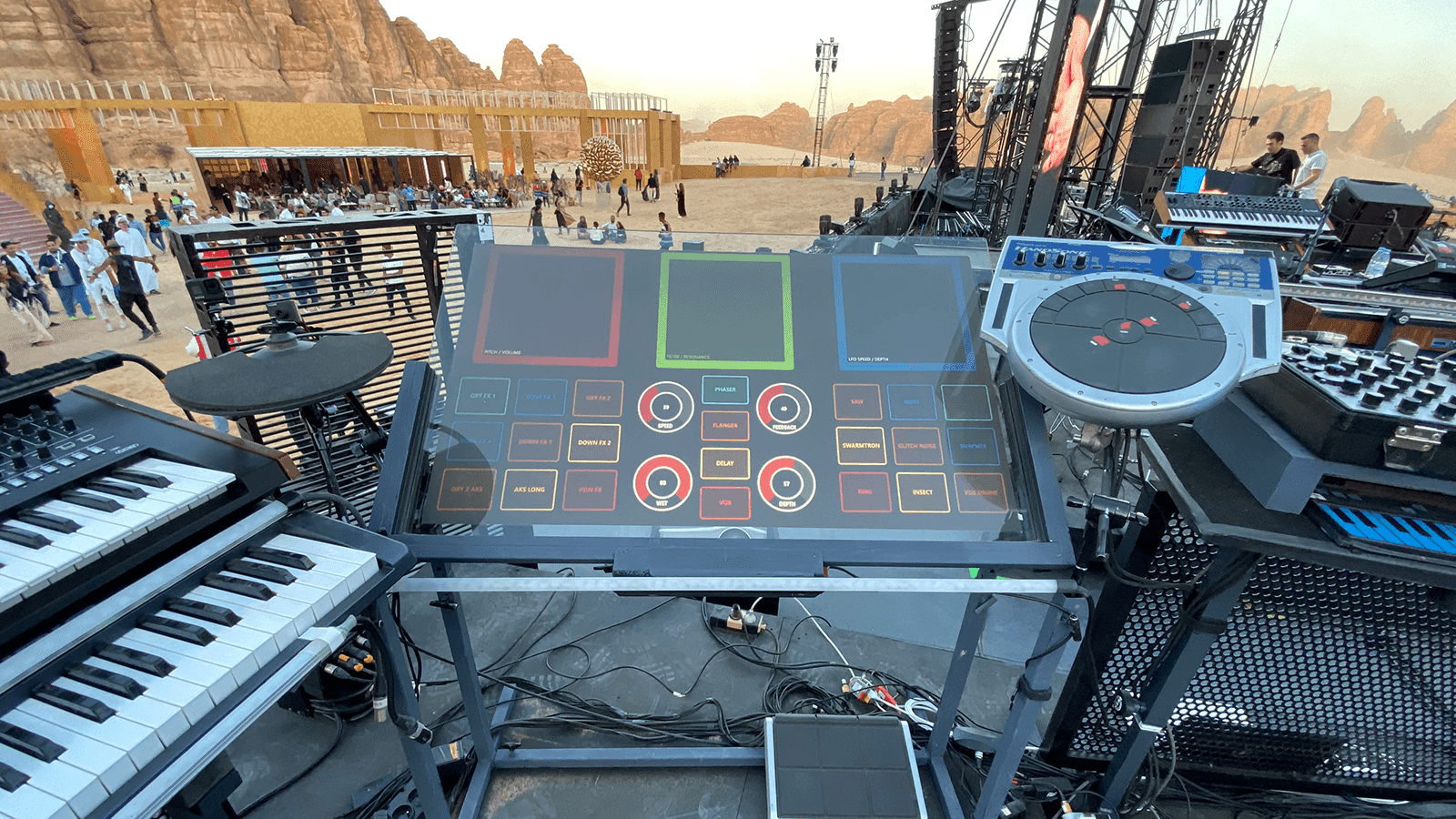

DJ interactive table made with PCAP touch technology

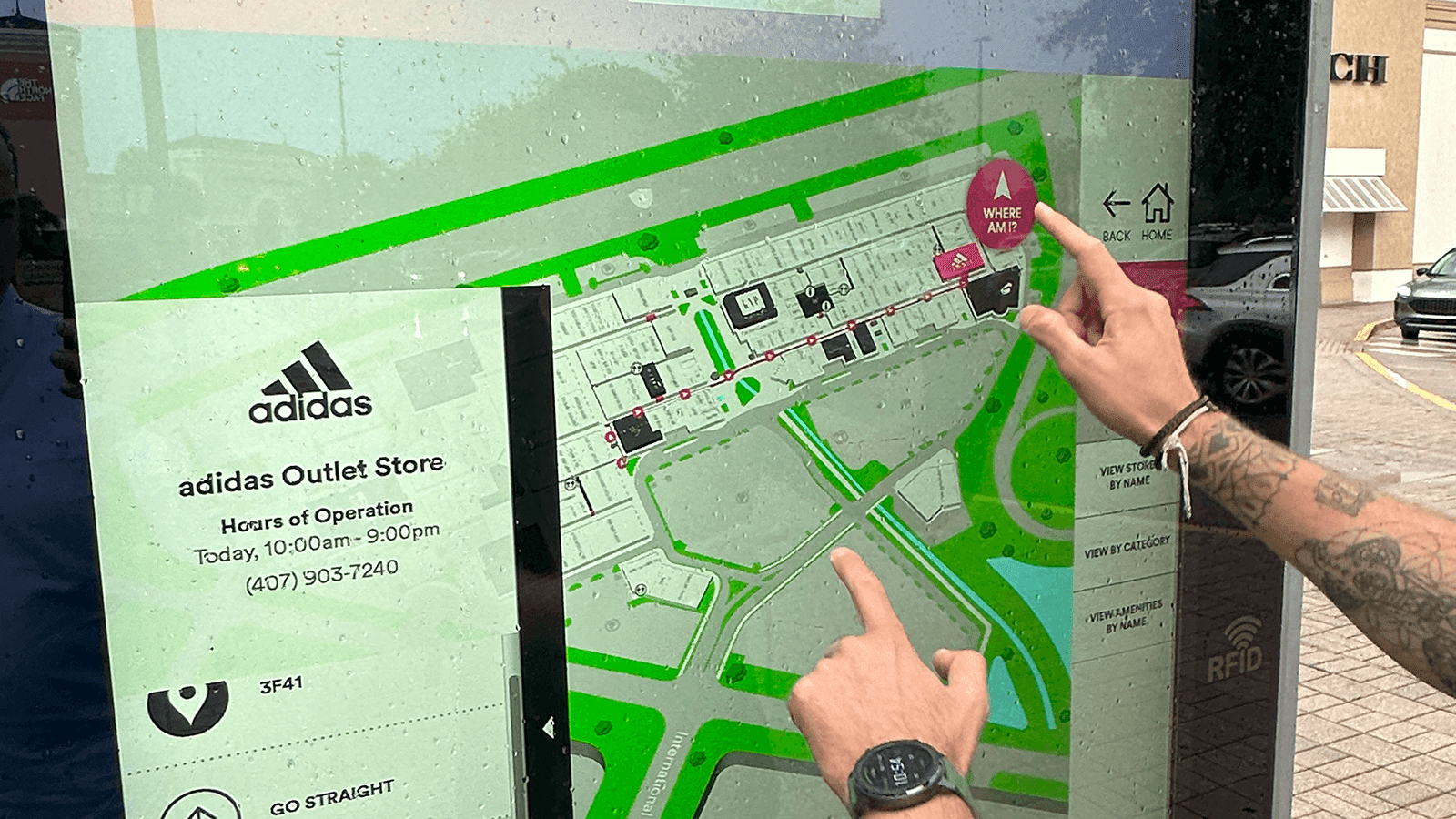

Outdoor PCAP Touch Kiosk working under rain

Use Cases

Typical Applications

Retail

Touch Kiosks

Interactive Digital Signage

Vending

Entertainment

Tables

Typical Applications

Retail

Touch Kiosks

Interactive Digital Signage

Vending

Entertainment

Tables

Resistant to Liquids, Dust, Ice and UV

There's no wear of the touch sensor, it is vandal proof and can be used in harsh environments.

Uniquely suited for outdoor use or laboratory environments. If used in a public space and liquids are spilled over the glass, the touch technology is unaffected.

Resistant to Liquids, Dust, Ice and UV

There´s no wear of the touch sensor, it is vandal proof and can be used in harsh environments.

Uniquely suited for outdoor use or laboratory environments. If used in a public space and liquids are spilled over the glass, the touch technology is unaffected.

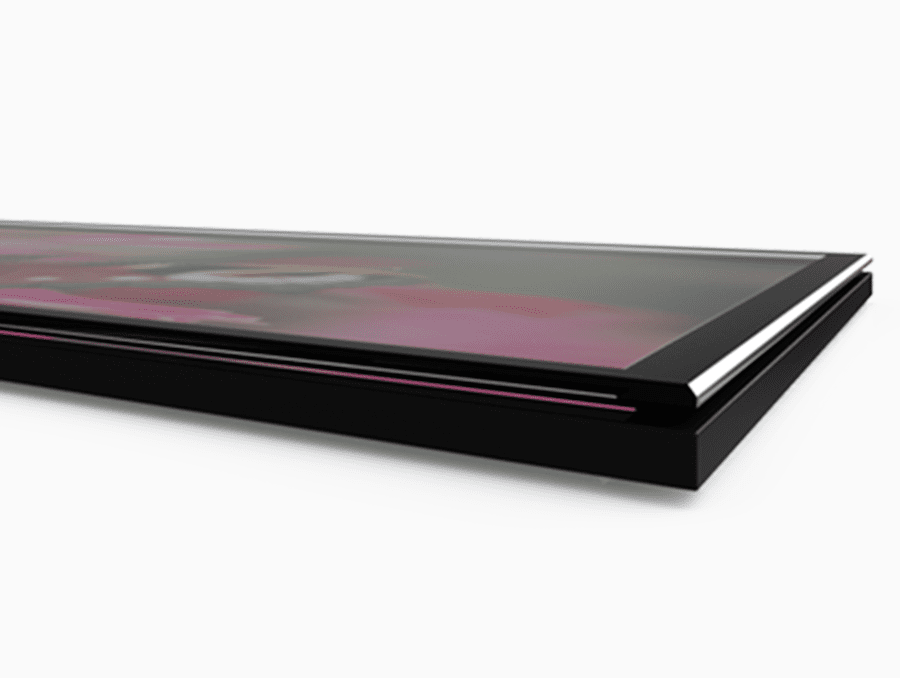

Glass Thickness

SKIN FIT goes up to through 15mm glass thick.

It's perfect for outdoor kiosks that require thicker glass for increased protection. It works as well in indoors as it does outside.

Glass Thickness

SKIN FIT goes up to through 15mm glass thick.

It's perfect for outdoor kiosks that require thicker glass for increased protection. It works as well in indoors as it does outside.

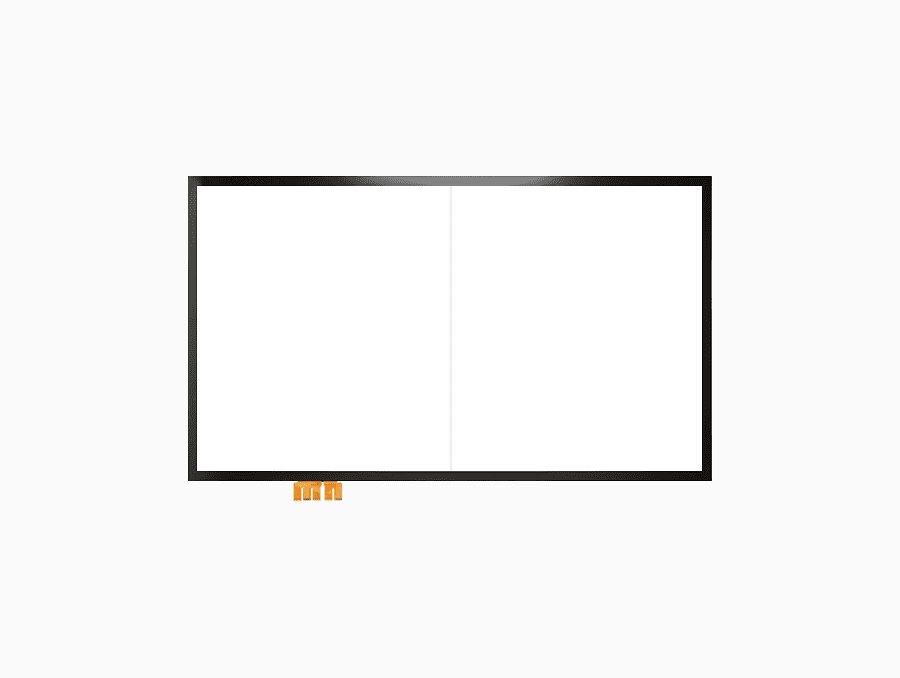

Advanced Calibration

You can use just one unit of Skin Fit on top of two or more displays and still command them seamlessly with touch.

With the advanced calibration tool you are able to make a geometric calibration on all the screens covered by the sensor, just as easily as if there was only one display.

Advanced Calibration

You can use just one unit of Skin Fit on top of two or more displays and still command them seamlessly with touch.

With the advanced calibration tool you are able to make a geometric calibration on all the screens covered by the sensor, just as easily as if there was only one display.

How Far Can You Customize Your Touch Sensor

SKIN FIT allows you to customize your touch sensor on any size from 30" to 135" in standard or custom formats, and also position the FPC on any side of the touch sensor.

How Far Can You Customize Your Touch Sensor

SKIN FIT allows you to customize your touch sensor on any size from 30" to 135" in standard or custom formats, and also position the FPC on any side of the touch sensor.

Want to speak to an expert?

Questions about pricing? Any active project you’d like to discuss? If you want to learn more about SKIN FIT, let’s connect.

Get in touch with our Team

Want to speak to an expert?

Questions about pricing? Any active project you’d like to discuss? If you want to learn more about SKIN FIT, let’s connect.

Get in touch with our Team

Flexible Form Factor

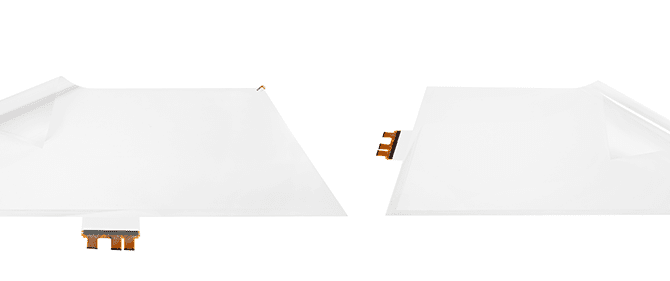

Customized Tail Position

The touch sensor can be placed in almost any position of the sensor, either the larger or the smaller side. The tail can also be manufactured longer to accommodate a better touch controller integration.

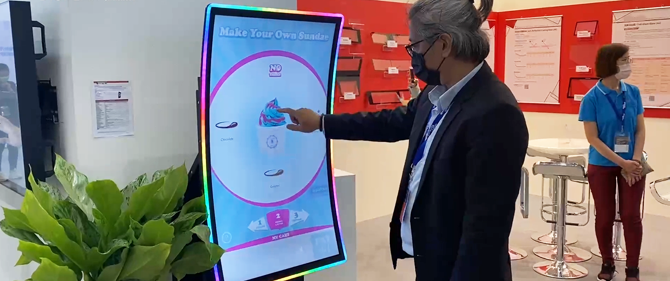

Flat or Curved

Apply the customised foil to any display format or aspect ratio:

Flat or Curved

Squared or Round

Corner Radius

Flexible Form Factor

Customized Tail Position

The touch sensor can be placed in almost any position of the sensor, either the larger or the smaller side. The tail can also be manufactured longer to accommodate a better touch controller integration.

Flat or Curved

Apply the customised foil to any display format or aspect ratio:

Flat or Curved

Squared or Round

Corner Radius

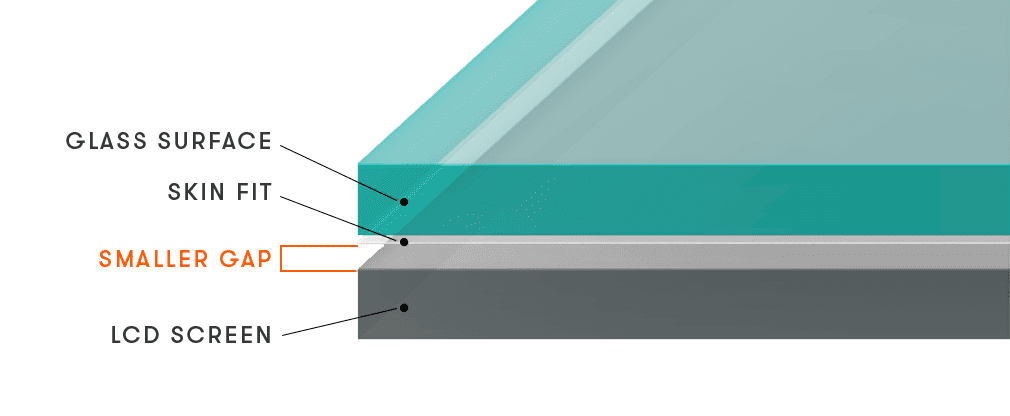

Ultimate Noise Filtering

XTR-Shield Plus

SKIN FIT has all of the latest DISPLAX’s proprietary touch noise filtering technology, know as XTR-Shield Plus. It filters the display noise that otherwise would affect the touch detection. Sensor can be placed closer than ever to the display, minimizing the parallax.

Ultimate Noise Filtering

XTR-Shield Plus

SKIN FIT has all of the latest DISPLAX’s proprietary touch noise filtering technology, know as XTR-Shield Plus. It filters the display noise that otherwise would affect the touch detection. Sensor can be placed closer than ever to the display, minimizing the parallax.

True HID Multitouch

Native single and multitouch support from OS

Windows

Chrome OS

Android

Raspberry Pi

Ubuntu

webOS

macOS

Tizen OS

True HID Multitouch

Native single and multitouch support from OS

Windows

Android

Ubuntu

macOS

Chrome OS

Raspberry Pi

webOS

Tizen OS

HID Mouse Emulation

Digital Signage Players

Windows Embedded

BrightSign

Smart Signage Platform

Spinetix

HID Mouse Emulation

Digital Signage Players

Windows Embedded

BrightSign

Smart Signage Platform

Spinetix

Compare our SKIN Touch Sensors

	SKIN FIT	SKIN ZEETO	SKIN ULTRA	SKIN DUALTOUCH
Positioning	Versatile performance & value	Harsh & demanding environments	Premium large-format performance	Entry-level & cost-effective
Size range	20"-135"	7"-24"	30"-135"	20"-105"
Simultaneous touches	Up to 40	Up to 10	Up to 100	Up to 2
Response time	5 ms	9 ms	5 ms	9 ms
High Resolution	—	—	✓	—
Aspect Ratio	16:9, 4:3, Custom formats	Custom designed sensor	16:9, 4:3, Custom formats	16:9, 4:3, Custom formats
Palm & Arm detection	✓ Palm detection	—	✓ Palm & Arm detection	—
Glass thickness	Up to 15 mm	Up to 20 mm	Up to 10 mm	Up to 15 mm
Touch Accuracy	0.53% of sensor diagonal	<1mm in 15” with 4mm glass	0.26% of sensor diagonal	0.80% of sensor diagonal
Finger Separation	2,64% of sensor diagonal	—	1,30% of sensor diagonal	4,01% of sensor diagonal
Outdoor use	✓	✓	✓*	✓
Designed for demanding environments	✓	✓	✓*	✓
Object Recognition	✓	—	✓	—
Custom shapes / formats	Fully customisable	Custom formats	Fully customisable	Custom formats
Adhesive	Permanent or Removable	Permanent or Removable	Permanent	Permanent or Removable
Substrate	Float Glass, Gorilla Glass	Glass and other non-conductive materials	Float Glass, Gorilla Glass	Float Glass, Gorilla Glass
Interface	USB HID, UART-TTL	USB HID (default); SPI, I2C, SERIAL TTL/RS232 (on request); Industrial Connector (on request)	HID	HID

* SKIN ULTRA: depends on the glass configuration; Extra Clear or Anti-Glare SKIN GLASS is suitable for demanding outdoor environments.

Compare our SKIN Touch Sensors

SKIN FIT

SKIN ZEETOSKIN ULTRASKIN DUALTOUCH

Positioning

Versatile performance & value

Harsh & demanding environmentsPremium large-format performanceEntry-level & cost-effective

Size range

20"-135"

7"-24"30"-135"20"-105"

Simultaneous touches

Up to 40

Up to 10Up to 100Up to 2

Response time

5 ms

9 ms5 ms9 ms

High Resolution

—

—✓—

Aspect Ratio

16:9, 4:3, Custom formats

Custom designed sensor16:9, 4:3, Custom formats16:9, 4:3, Custom formats

Palm & Arm detection

✓ Palm detection

—✓ Palm & Arm detection—

Glass thickness

Up to 15 mm

Up to 20 mmUp to 10 mmUp to 15 mm

Touch Accuracy

0.53% of sensor diagonal

<1mm in 15" with 4mm glass0.26% of sensor diagonal0.80% of sensor diagonal

Finger Separation

2,64% of sensor diagonal

—1,30% of sensor diagonal4,01% of sensor diagonal

Outdoor use

✓

✓✓*✓

Designed for demanding environments

✓

✓✓*✓

Object Recognition

✓

—✓—

Custom shapes / formats

Fully customisable

Custom formatsFully customisableCustom formats

Adhesive

Permanent or Removable

Permanent or RemovablePermanentPermanent or Removable

Substrate

Float Glass, Gorilla Glass

Glass and other non-conductive materialsFloat Glass, Gorilla GlassFloat Glass, Gorilla Glass

Interface

USB HID, UART-TTL

USB HID (default); SPI, I2C, SERIAL TTL/RS232 (on request); Industrial Connector (on request)HIDHID

* SKIN ULTRA: depends on the glass configuration; Extra Clear or Anti-Glare SKIN GLASS is suitable for demanding outdoor environments.

Specifications & Support

Technical Specifications

Download Spec File

Getting Started with SKIN

Learn More

Specifications & Support

Technical Specifications

Download Spec File

Getting Started with SKIN

Learn More

Certifications

At DISPLAX, we apply the best procedures to assure that our customers receive the best possible experience.

Conformité Européenne (CE)

Federal Communications Commission (FCC)

Restriction of Hazardous Substances (RoHS)

Certifications

At DISPLAX, we apply the best procedures to assure that our customers receive the best possible experience.

Conformité Européenne (CE)

Federal Communications Commission (FCC)

Restriction of Hazardous Substances (RoHS)

FAQs

What is DISPLAX SKIN FIT touch foil?

SKIN FIT is DISPLAX’s highly versatile PCAP touch sensor, designed to deliver an outstanding balance of touch performance, flexibility and value. It supports up to 40 simultaneous touches, a 5 ms response time and palm detection, making it suitable for a wide range of indoor and outdoor applications.

What are typical market applications for SKIN FIT?

SKIN FIT is ideal for indoor and outdoor kiosks, vending machines, retail and interactive signage, transportation and wayfinding terminals, hospitality and corporate environments, interactive tables and public information systems. It is also suitable for high-traffic applications.

What size range is available for SKIN FIT?

SKIN FIT is fully customisable from 20" to 135". It can be produced in standard or custom formats, including 16:9, 16:10, 4:3 and ultra-wide aspect ratios, as well as curved, squared or round shapes with adjustable corner radii.

Can SKIN FIT be used behind glass and in outdoor environments?

SKIN FIT supports touch-through-glass detection through protective glass up to 15 mm thick and can be supplied with an optional pre-laminated SKIN GLASS module in Extra Clear, Anti-Glare or Mirror options, depending on the glass type and thickness. It is designed for indoor and outdoor applications, with resistance to liquids, dust, ice and UV exposure.

Is SKIN FIT resistant to ambient electrical noise?

SKIN FIT uses a DISPLAX proprietary controller with advanced noise-filtering algorithms and auto-tuning to maintain stable touch performance and reduce false or ghost touches, including in demanding and electrically noisy environments.

Can SKIN FIT be customised for specific display and installation requirements?

SKIN FIT offers extensive customisation, including format, shape, aspect ratio, border dimensions and repositionable FPC on any side of the sensor. It can also be supplied laminated with glass and supports advanced calibration for multi-display setups, providing flexible integration for different project requirements.

What is the cost of a SKIN FIT touch foil?

SKIN FIT pricing varies based on sensor size, shape, format, customisation, glass integration and order volume. For detailed pricing or distributor quotes, contact the DISPLAX sales team directly.

FAQs

What is DISPLAX SKIN FIT touch foil?

SKIN FIT is DISPLAX’s highly versatile PCAP touch sensor, designed to deliver an outstanding balance of touch performance, flexibility and value. It supports up to 40 simultaneous touches, a 5 ms response time and palm detection, making it suitable for a wide range of indoor and outdoor applications.

What are typical market applications for SKIN FIT?

SKIN FIT is ideal for indoor and outdoor kiosks, vending machines, retail and interactive signage, transportation and wayfinding terminals, hospitality and corporate environments, interactive tables and public information systems. It is also suitable for high-traffic applications.

What size range is available for SKIN FIT?

SKIN FIT is fully customisable from 20" to 135". It can be produced in standard or custom formats, including 16:9, 16:10, 4:3 and ultra-wide aspect ratios, as well as curved, squared or round shapes with adjustable corner radii.

Can SKIN FIT be used behind glass and in outdoor environments?

SKIN FIT supports touch-through-glass detection through protective glass up to 15 mm thick and can be supplied with an optional pre-laminated SKIN GLASS module in Extra Clear, Anti-Glare or Mirror options, depending on the glass type and thickness. It is designed for indoor and outdoor applications, with resistance to liquids, dust, ice and UV exposure.

Is SKIN FIT resistant to ambient electrical noise?

SKIN FIT uses a DISPLAX proprietary controller with advanced noise-filtering algorithms and auto-tuning to maintain stable touch performance and reduce false or ghost touches, including in demanding and electrically noisy environments.

Can SKIN FIT be customised for specific display and installation requirements?

SKIN FIT offers extensive customisation, including format, shape, aspect ratio, border dimensions and repositionable FPC on any side of the sensor. It can also be supplied laminated with glass and supports advanced calibration for multi-display setups, providing flexible integration for different project requirements.

What is the cost of a SKIN FIT touch foil?

SKIN FIT pricing varies based on sensor size, shape, format, customisation, glass integration and order volume. For detailed pricing or distributor quotes, contact the DISPLAX sales team directly.

You might also be interested in other solutions

SKIN ULTRA

Premium Touch Experience

Learn More

OVERLAY

Signage LCDs into Touchscreens

Learn More

SKIN ROUND

Unique Form Factor

Learn More

You might also be interested in other solutions

SKIN ULTRA

Premium Touch Experience

Learn More

OVERLAY

Signage LCDs into Touchscreens

Learn More

SKIN ROUND

Unique Form Factor

Learn More

Get in Touch

Questions about pricing? Any active project you’d like to discuss? Let’s connect.

Contact Sales

Get in Touch

Questions about pricing? Any active project you’d like to discuss? Let’s connect.

Contact Sales

SKIN FIT

Performance & Versatility

Customizable solution up to 135” for indoor and outdoor touch kiosks, retail, vending, and other applications.

SKIN FIT

SKIN FIT

Performance & Versatility

Customizable solution up to 135” for indoor and outdoor touch kiosks, retail, vending, and other applications.

Flexible Touch Solution for Indoor and Outdoor

Flexible Touch Solution for Indoor and Outdoor

Highly Customizable

Highly Customizable

PCAP Touchscreens for Indoor and Outdoor Environments

PCAP Touchscreens for Indoor and Outdoor Environments

PCAP Touchscreens for Indoor and Outdoor Environments

Fully Customizable Foil or Glass

Fully Customizable Foil or Glass

Format

Variable width/height ratio

FPC tail position and length

Borders' width/height

Borders' width/height

Removable or permanent application

Removable or permanent application

Fully Customizable Foil or Glass

Fully Customizable Foil or Glass

Format

Format

Variable width/height ratio

Variable width/height ratio

FPC tail position and length

FPC tail position and length

Borders' width/height

Borders' width/height

Removable or permanent application

Removable or permanent application

​​Use Cases

Use Cases

Typical Applications

Typical Applications

Resistant to ​Liquids, Dust, Ice and UV

Resistant to ​Liquids, Dust, Ice and UV

Resistant to ​Liquids, Dust, Ice and UV

Resistant to ​Liquids, Dust, Ice and UV

Glass Thickness

Glass Thickness

Advanced Calibration

Advanced Calibration

How Far Can You Customize Your Touch Sensor

How Far Can You Customize Your Touch Sensor

Want to speak to an expert?

Want to speak to an expert?

Flexible Form Factor

Customized Tail Position

Flat or Curved

Flat or Curved

Squared or Round

Corner Radius

Flexible Form Factor

Customized Tail Position

Flat or Curved

Flat or Curved

Squared or Round

Corner Radius

Ultimate Noise Filtering

Ultimate Noise Filtering

True HID Multitouch

True HID Multitouch

HID Mouse Emulation

HID Mouse Emulation

Compare our SKIN Touch Sensors

Compare our SKIN Touch Sensors

​​Specifications & Support

Technical Specifications

Getting Started with SKIN

Specifications & Support

Technical Specifications

Getting Started with SKIN

Certifications

Certifications

FAQs

Use Cases

Resistant to Liquids, Dust, Ice and UV

Resistant to Liquids, Dust, Ice and UV

Resistant to Liquids, Dust, Ice and UV

Resistant to Liquids, Dust, Ice and UV

Specifications & Support
