SKIN DUALTOUCH

Cost Effective Touch

Our entry product for indoor or outdoor wayfinding solutions or touch kiosks.

Available from 20” to 105”.

Cost Effective Touch Solution

SKIN DUALTOUCH is DISPLAX’s entry level cost-effective touch solution. It’s aimed mostly for touch kiosks or wayfinding solutions either for indoor or outdoor application, as this is a very robust product, ready for harsh environments.

Custom size from 20'' to 105''

Finger Touches

Up to 15mm Glass Thickness

Flexible

Not Affected by Day Light

Ready for Harsh Environments

Cost Effective Touch Solution

SKIN DUALTOUCH is DISPLAX’s entry level cost-effective touch solution. It’s aimed mostly for touch kiosks or wayfinding solutions either for indoor or outdoor application, as this is a very robust product, ready for harsh environments.

Custom size from 20'' to 105''

Finger Touches

Up to 15mm Glass Thickness

Flexible

Not Affected by Day Light

Ready for Harsh Environments

Smaller Sizes and Simple Applications

Understanding the importance of user-friendly interfaces in simple applications, SKIN DUALTOUCH is crafted specifically for simple applications like wayfinding systems and information kiosks, ensuring effortless interaction and seamless navigation for your audience.

SKIN DUALTOUCH is built with durability in mind, ensuring reliable performance even in high-traffic settings.

Smaller Sizes and Simple Applications

Understanding the importance of user-friendly interfaces in simple applications, SKIN DUALTOUCH is crafted specifically for simple applications like wayfinding systems and information kiosks, ensuring effortless interaction and seamless navigation for your audience.

SKIN DUALTOUCH is built with durability in mind, ensuring reliable performance even in high-traffic settings.

Ready for Indoor and Outdoor Touch Kiosks

The problems of the outdoor stands are extreme heat or cold, direct exposure to sun and UV, dust, rain and salt water, plus thousands of touches per day.

Therefore, the three main criteria in selecting the best products are: DURABILITY, FUNCTIONALITY and RELIABILITY.

For a simpler solution, SKIN DUALTOUCH is the touch sensor for you.

Ready for Indoor and Outdoor Touch Kiosks

The problems of the outdoor stands are extreme heat or cold, direct exposure to sun and UV, dust, rain and salt water, plus thousands of touches per day.

Therefore, the three main criteria in selecting the best products are: DURABILITY, FUNCTIONALITY and RELIABILITY.

For a simpler solution, SKIN DUALTOUCH is the touch sensor for you.

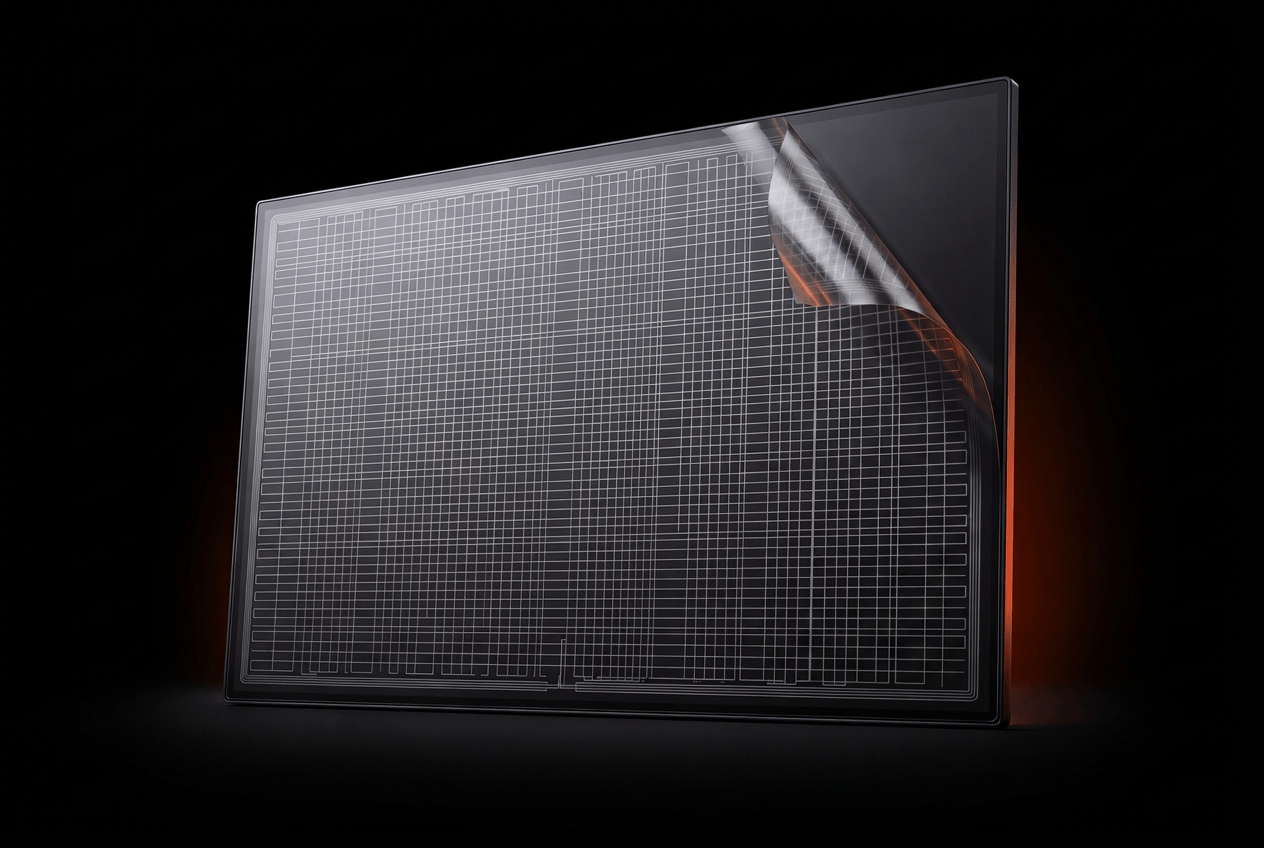

Fully Customizable Foil or Glass

DISPLAX multitouch sensors are wire-based sensor films designed to be used together with DISPLAX controllers and ready to be laminated in a non-conductive substract. They are UV and scratch resistant with the possibility of being fully customized:

Format

Variable width/height ratio

FPC tail position and length

Borders' width/height

Removable or permanent application

They can also be shipped already laminated with a glass of your choice and ready to be installed.

Fully Customizable Foil or Glass

DISPLAX multitouch sensors are wire-based sensor films designed to be used together with DISPLAX controllers and ready to be laminated in a non-conductive substract. They are UV and scratch resistant with the possibility of being fully customized:

Format

Variable width/height ratio

FPC tail position and length

Borders' width/height

Removable or permanent application

They can also be shipped already laminated with a glass of your choice and ready to be installed.

Use Cases

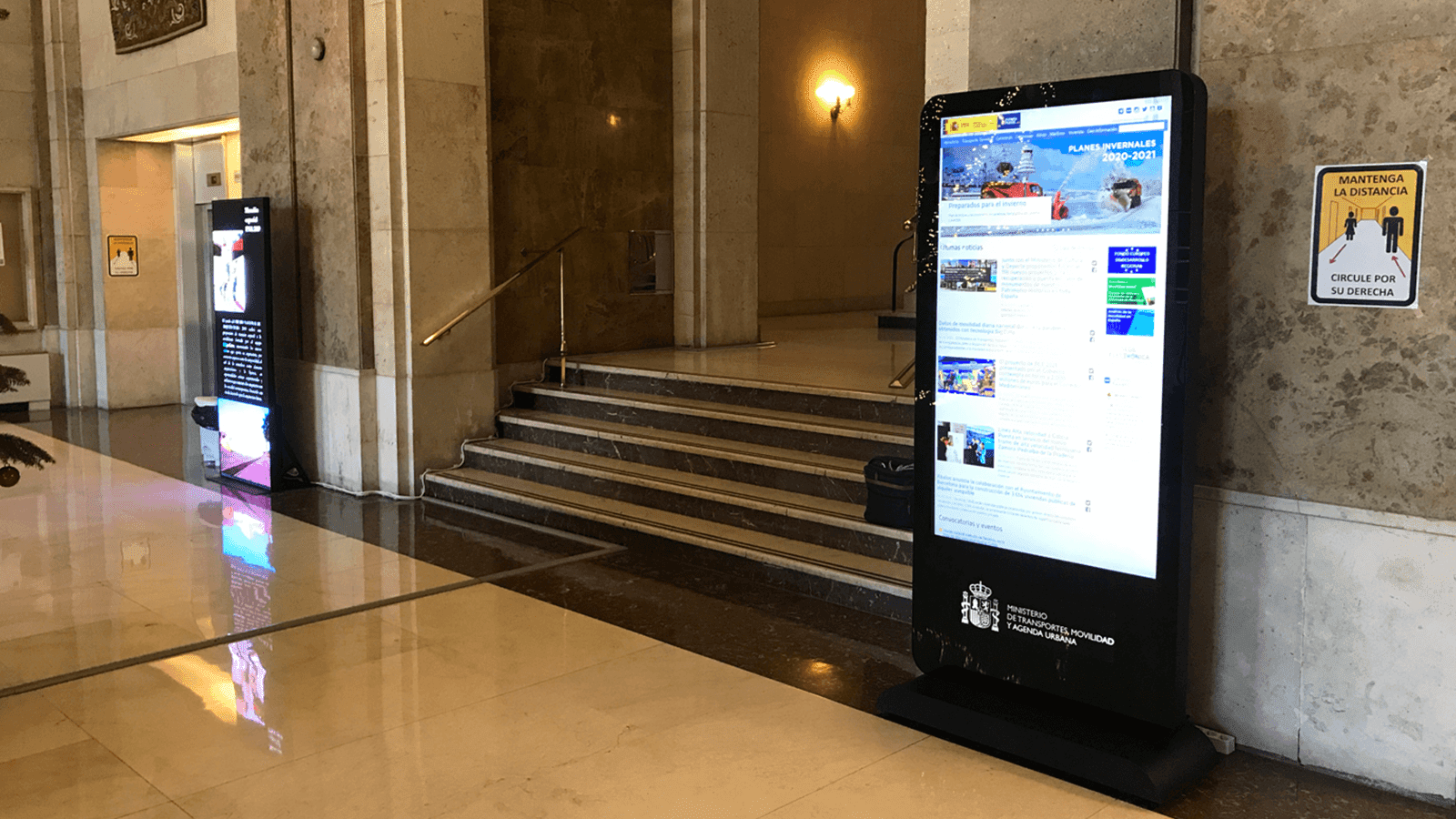

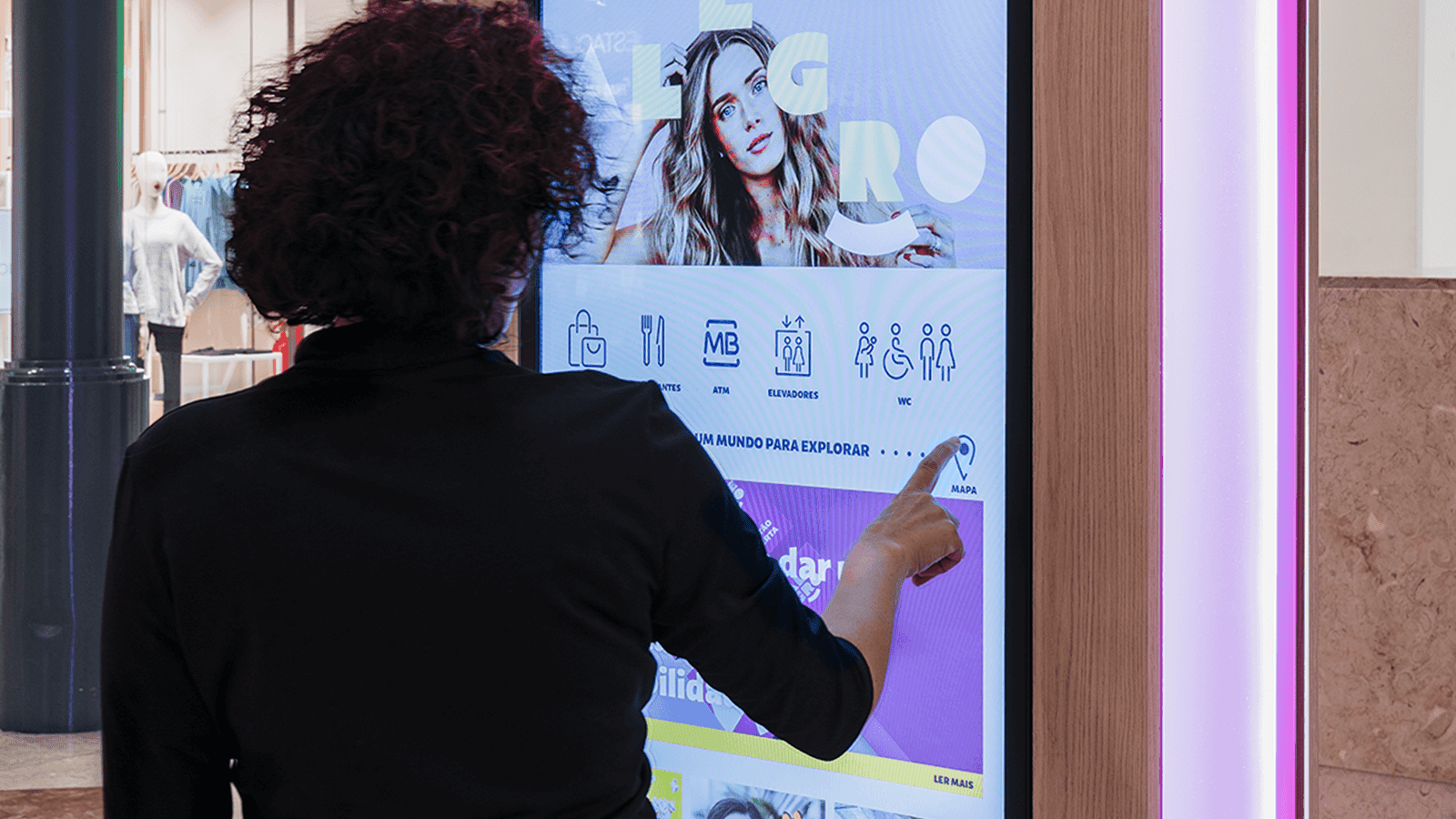

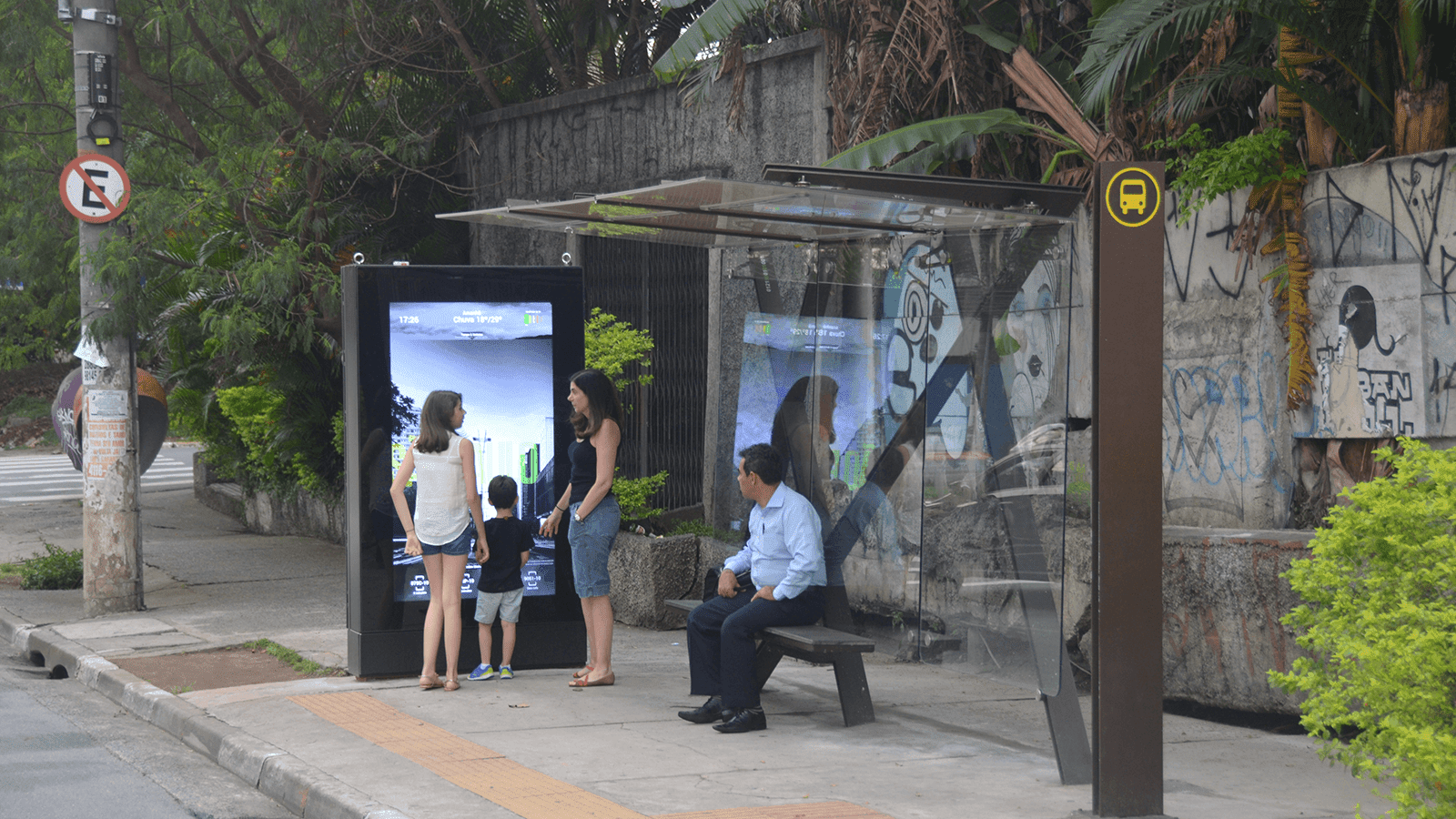

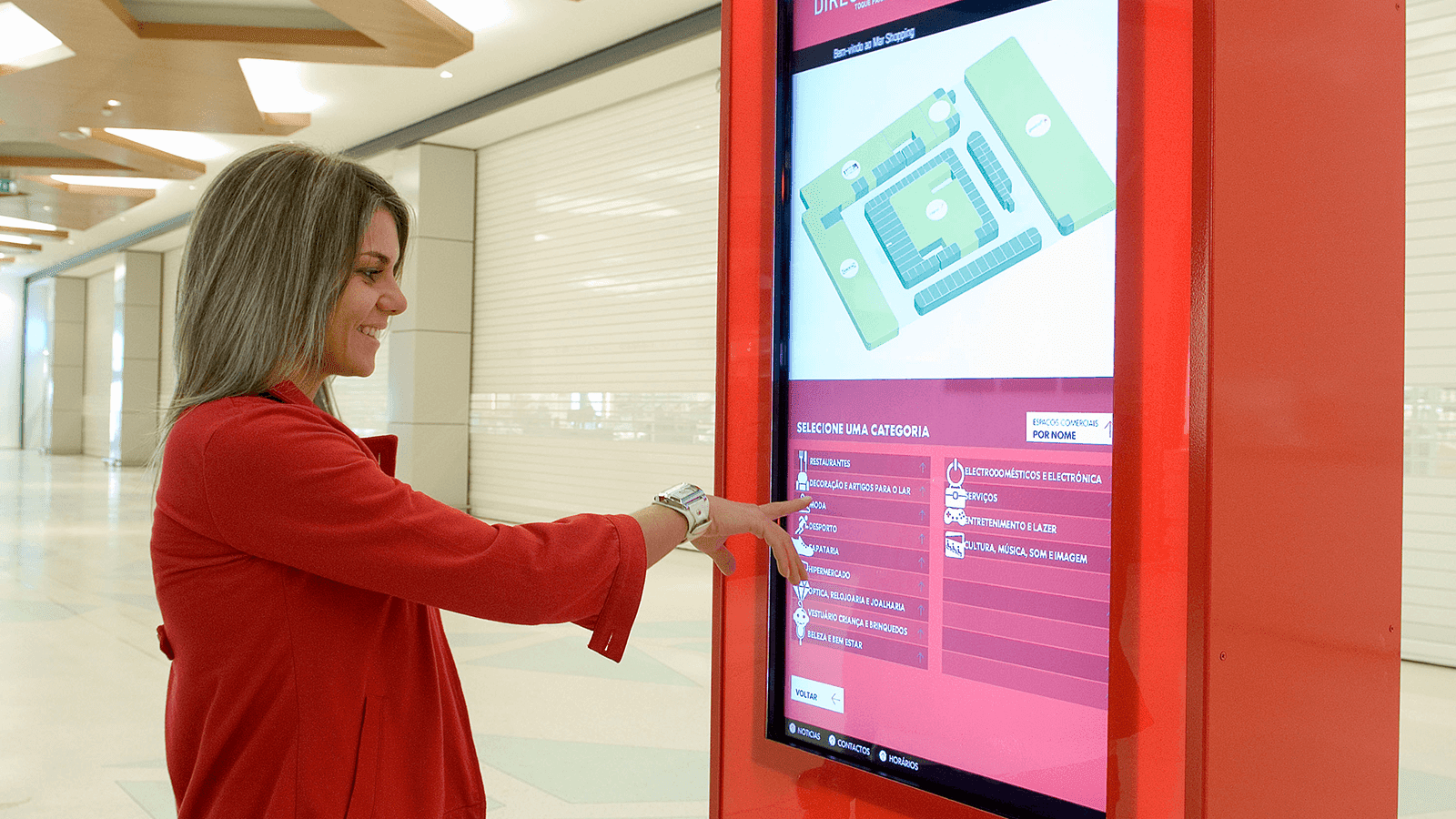

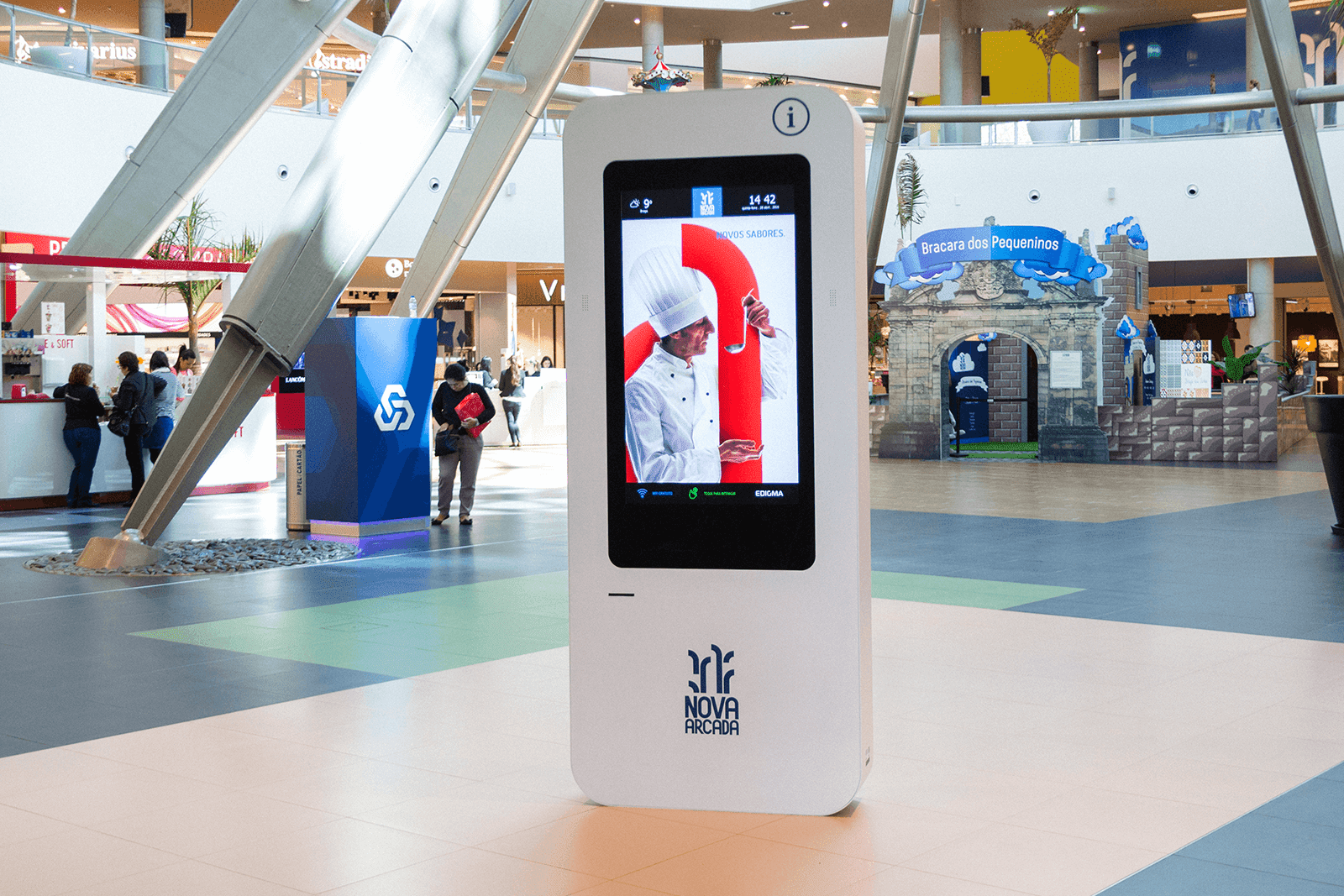

SKIN DUALTOUCH for indoor interactive kiosks

Use Cases

Typical Applications

Wayfinding Solutions

Vending

Interactive Digital Signage

Typical Applications

Wayfinding Solutions

Vending

Interactive Digital Signage

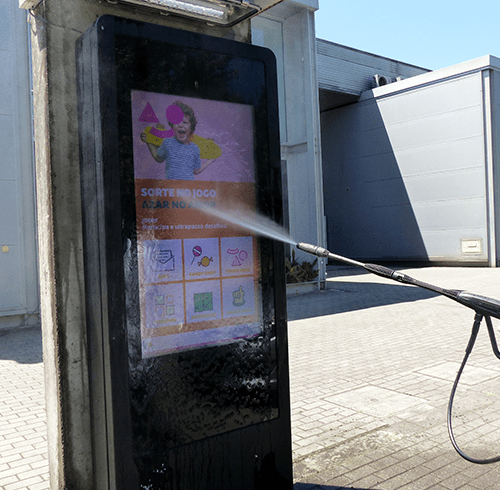

Weather Resistant

Ensure the optical integrity of your touchscreen and benefit from full transparency.

SKIN DUALTOUCH is resistant to rain, dust, ice and UV without affecting the touch technology.

Build a robust kiosk with the highest performance.

Weather Resistant

Ensure the optical integrity of your touchscreen and benefit from full transparency.

SKIN DUALTOUCH is resistant to rain, dust, ice and UV without affecting the touch technology.

Build a robust kiosk with the highest performance.

Want to speak to an expert?

Questions about pricing? Got an active project you’d like to discuss? If you want to learn more about SKIN DUALTOUCH, let’s connect.

Get in Touch with our Team

Want to speak to an expert?

Questions about pricing? Got an active project you’d like to discuss? If you want to learn more about SKIN DUALTOUCH, let’s connect.

Get in Touch with our Team

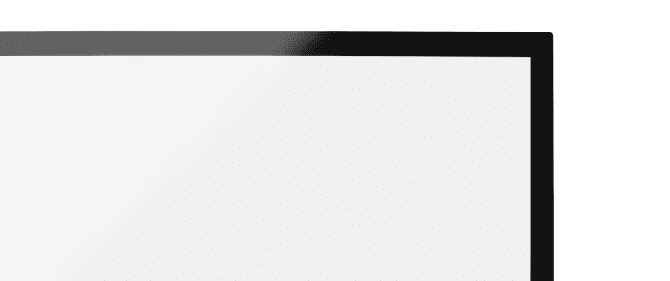

Combine Foil with Glass

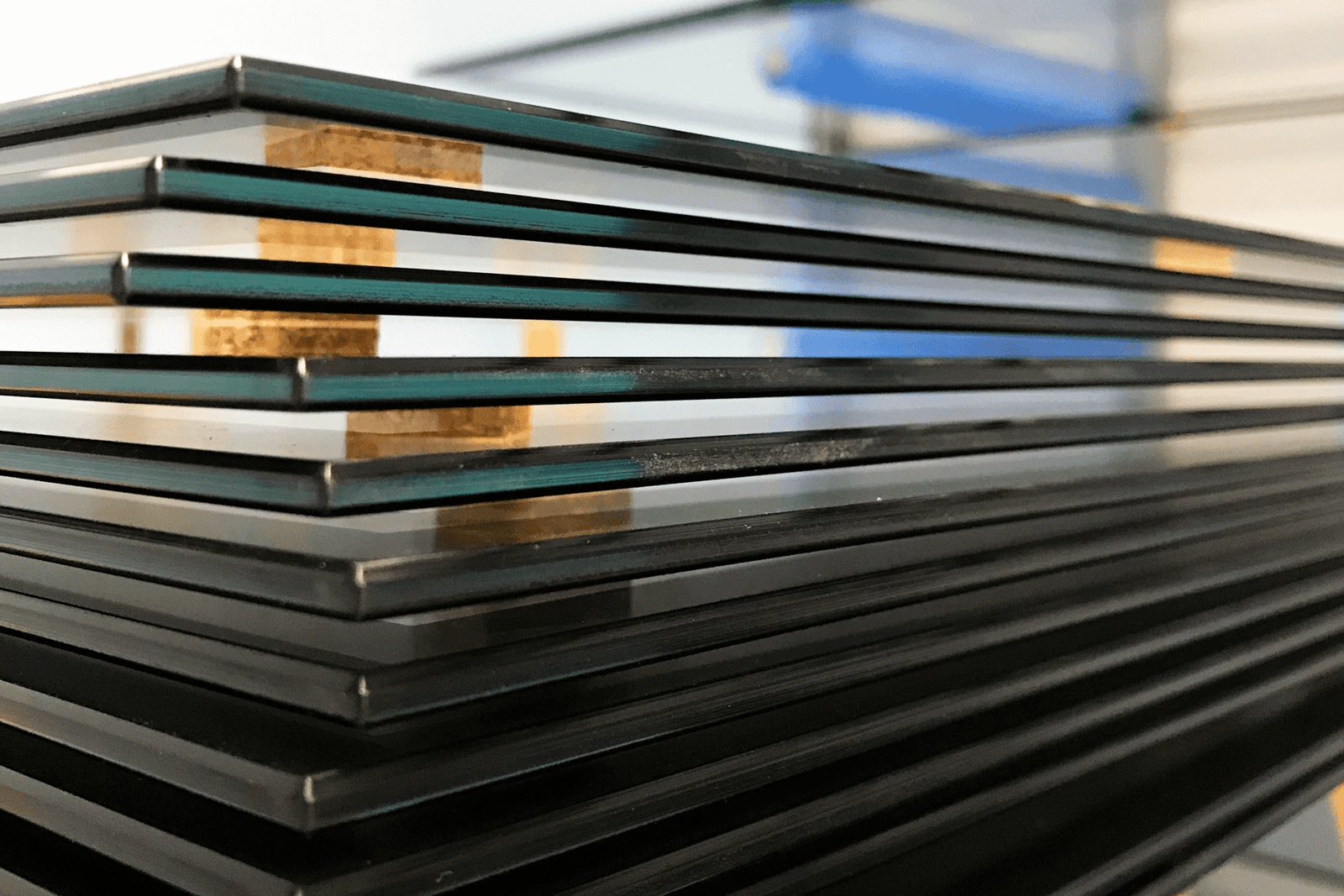

Special Touchscreen Glass

We offer high quality glass produced for touchscreen use that has passed tight quality requirements compared to regular glass. Have it already laminated on any size, framing or color to make the unit ready for assembling.

Glass Thickness

SKIN DUALTOUCH can be laminated on glass up to 15mm thickness. Such a wide range of thickness fits the several requirements of different projects while benefiting from SKIN DUALTOUCH’s superb touch performance.

Combine Foil with Glass

Special Touchscreen Glass

We offer high quality glass produced for touchscreen use that has passed tight quality requirements compared to regular glass. Have it already laminated on any size, framing or color to make the unit ready for assembling.

Glass Thickness

SKIN DUALTOUCH can be laminated on glass up to 15mm thickness. Such a wide range of thickness fits the several requirements of different projects while benefiting from SKIN DUALTOUCH’s superb touch performance.

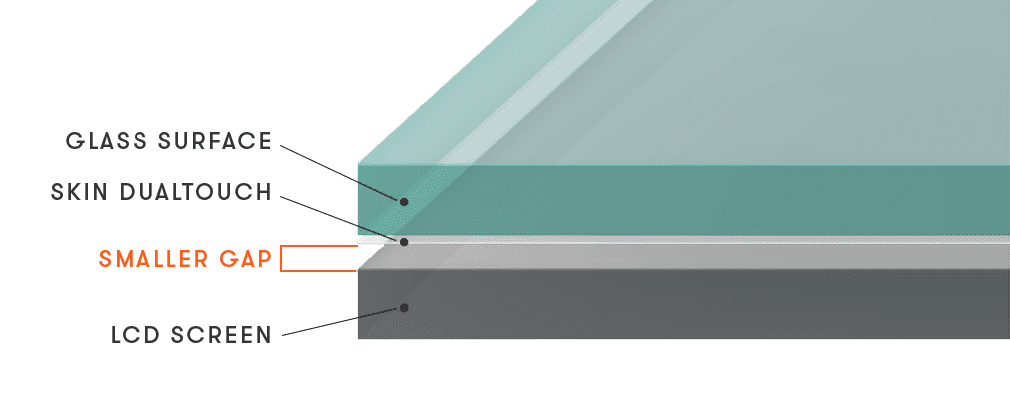

Ultimate Noise Filtering

XTR-Shield Plus

SKIN DUALTOUCH has all of the latest DISPLAX’s proprietary touch noise filtering technology, know as XTR-Shield Plus.

It filters the display noise that otherwise would affect the touch detection. Sensor can be placed closer than ever to the display, minimizing the parallax.

Ultimate Noise Filtering

XTR-Shield Plus

SKIN DUALTOUCH has all of the latest DISPLAX’s proprietary touch noise filtering technology, know as XTR-Shield Plus.

It filters the display noise that otherwise would affect the touch detection. Sensor can be placed closer than ever to the display, minimizing the parallax.

True HID Multitouch

Native single and multitouch support from OS

Windows

Chrome OS

Android

Raspberry Pi

Ubuntu

webOS

macOS

Tizen OS

True HID Multitouch

Native single and multitouch support from OS

Windows

Android

Ubuntu

macOS

Chrome OS

Raspberry Pi

webOS

Tizen OS

HID Mouse Emulation

Digital Signage Players

Windows Embedded

BrightSign

Smart Signage Platform

Spinetix

HID Mouse Emulation

Digital Signage Players

Windows Embedded

BrightSign

Smart Signage Platform

Spinetix

Compare our SKIN Touch Sensors

	SKIN DUALTOUCH	SKIN ZEETO	SKIN ULTRA	SKIN FIT
Positioning	Entry-level & cost-effective	Harsh & demanding environments	Premium large-format performance	Versatile performance & value
Size range	20"-105"	7"-24"	30"-135"	20"-135"
Simultaneous touches	Up to 2	Up to 10	Up to 100	Up to 40
Response time	9 ms	9 ms	5 ms	5 ms
High Resolution	—	—	✓	—
Aspect Ratio	16:9, 4:3, Custom formats	Custom designed sensor	16:9, 4:3, Custom formats	16:9, 4:3, Custom formats
Palm & Arm detection	—	—	✓ Palm & Arm detection	✓ Palm detection
Glass thickness	Up to 15 mm	Up to 20 mm	Up to 10 mm	Up to 15 mm
Touch Accuracy	0.80% of sensor diagonal	<1mm in 15” with 4mm glass	0.26% of sensor diagonal	0.53% of sensor diagonal
Finger Separation	4,01% of sensor diagonal	—	1,30% of sensor diagonal	2,64% of sensor diagonal
Outdoor use	✓	✓	✓*	✓
Designed for demanding environments	✓	✓	✓*	✓
Object Recognition	—	—	✓	✓
Custom shapes / formats	Custom formats	Custom formats	Fully customisable	Fully customisable
Adhesive	Permanent or Removable	Permanent or Removable	Permanent	Permanent or Removable
Substrate	Float Glass, Gorilla Glass	Glass and other non-conductive materials	Float Glass, Gorilla Glass	Float Glass, Gorilla Glass
Interface	HID	USB HID (default); SPI, I2C, SERIAL TTL/RS232 (on request); Industrial Connector (on request)	HID	USB HID, UART-TTL

* SKIN ULTRA: depends on the glass configuration; Extra Clear or Anti-Glare SKIN GLASS is suitable for demanding outdoor environments.

Compare our SKIN Touch Sensors

SKIN DUALTOUCH

SKIN ZEETOSKIN ULTRASKIN FIT

Positioning

Entry-level & cost-effective

Harsh & demanding environmentsPremium large-format performanceVersatile performance & value

Size range

20"-105"

7"-24"30"-135"20"-135"

Simultaneous touches

Up to 2

Up to 10Up to 100Up to 40

Response time

9 ms

9 ms5 ms5 ms

High Resolution

—

—✓—

Aspect Ratio

16:9, 4:3, Custom formats

Custom designed sensor16:9, 4:3, Custom formats16:9, 4:3, Custom formats

Palm & Arm detection

—

—✓ Palm & Arm detection✓ Palm detection

Glass thickness

Up to 15 mm

Up to 20 mmUp to 10 mmUp to 15 mm

Touch Accuracy

0.80% of sensor diagonal

<1mm in 15" with 4mm glass0.26% of sensor diagonal0.53% of sensor diagonal

Finger Separation

4,01% of sensor diagonal

—1,30% of sensor diagonal2,64% of sensor diagonal

Outdoor use

✓

✓✓*✓

Designed for demanding environments

✓

✓✓*✓

Object Recognition

—

—✓✓

Custom shapes / formats

Custom formats

Custom formatsFully customisableFully customisable

Adhesive

Permanent or Removable

Permanent or RemovablePermanentPermanent or Removable

Substrate

Float Glass, Gorilla Glass

Glass and other non-conductive materialsFloat Glass, Gorilla GlassFloat Glass, Gorilla Glass

Interface

HID

USB HID (default); SPI, I2C, SERIAL TTL/RS232 (on request); Industrial Connector (on request)HIDUSB HID, UART-TTL

* SKIN ULTRA: depends on the glass configuration; Extra Clear or Anti-Glare SKIN GLASS is suitable for demanding outdoor environments.

Specifications & Support

Technical Specifications

Download Spec File

Getting Started with SKIN

Learn More

Specifications & Support

Technical Specifications

Download Spec File

Getting Started with SKIN

Learn More

Certifications

At DISPLAX, we apply the best procedures to assure that our customers receive the best possible experience.

Conformité Européenne (CE)

Federal Communications Commission (FCC)

Restriction of Hazardous Substances (RoHS)

Certifications

At DISPLAX, we apply the best procedures to assure that our customers receive the best possible experience.

Conformité Européenne (CE)

Federal Communications Commission (FCC)

Restriction of Hazardous Substances (RoHS)

FAQs

What is DISPLAX SKIN DUALTOUCH?

SKIN DUALTOUCH is DISPLAX’s entry-level PCAP touch sensor, designed to deliver reliable and robust touch performance at a cost-effective price point. It is suited to interactive applications where essential multi-touch functionality and budget efficiency are key requirements.

How many simultaneous touches does SKIN DUALTOUCH support?

SKIN DUALTOUCH supports up to 2 simultaneous touches and enables essential multi-touch gestures such as tap, zoom, rotate and swipe. It provides a practical solution for single-user interactive applications.

What applications are best suited for SKIN DUALTOUCH?

SKIN DUALTOUCH is ideal for wayfinding and information kiosks, vending machines, interactive digital signage and transportation terminals. It is suitable for indoor and outdoor public-facing applications and high-volume deployments where reliable touch performance and cost efficiency are important.

What size range is available for SKIN DUALTOUCH?

SKIN DUALTOUCH is fully customisable from 20" to 135". Custom formats are available on request, with flexible integration options and custom borders and mounting configurations.

Can SKIN DUALTOUCH be used behind protective glass and in outdoor environments?

SKIN DUALTOUCH supports touch detection through glass up to 15 mm thick and is suitable for vandal-resistant and outdoor installations. It is resistant to liquids, dust, ice and UV exposure and remains stable under direct sunlight, making it suitable for outdoor kiosks, vending machines and interactive signage.

How does SKIN DUALTOUCH maintain reliable performance in demanding environments?

SKIN DUALTOUCH uses DISPLAX XTR-Shield™ Plus technology for advanced EMI noise filtering and stable performance in electrically noisy environments. Combined with reliable operation in direct sunlight and harsh indoor or outdoor conditions, it provides robust touch performance for demanding public applications.

What is the cost of a SKIN DUALTOUCH?

SKIN DUALTOUCH pricing varies based on sensor size, configuration, customisation and order volume. Optional glass integration and other project-specific requirements may also affect the final price. For detailed pricing or distributor quotes, contact the DISPLAX sales team directly.
