SKIN ULTRA

Premium Touch Experience

The perfect touchscreens for experiences and museums.

Unrivalled Touch Experience in Large Format

SKIN ULTRA is DISPLAX’s premium touch sensor that offers an unrivalled touch experience in large format with added functionalities such as Object Recognition, Pressure Sensing and Infinity Feature. Provides a uniform, accurate and precise touch experience with the highest touch resolution allowing for smaller detection distance between fingers.

Custom size from 30'' to 135''

Up to 100 Finger Touches

High Touch Response of just 5ms

3D Pressure Sensing Detection

High Resolution

Physical Object Recognition

Unrivalled Touch Experience in Large Format

SKIN ULTRA is DISPLAX’s premium touch sensor that offers an unrivalled touch experience in large format with added functionalities such as Object Recognition, Pressure Sensing and Infinity Feature. Provides a uniform, accurate and precise touch experience with the highest touch resolution allowing for smaller detection distance between fingers.

Custom size from 30'' to 135''

Up to 100 Finger Touches

High Touch Response of just 5ms

3D Pressure Sensing Detection

High Resolution

Physical Object Recognition

SKIN ULTRA has Superior Accuracy and Response

Superior Touch Accuracy and Response

The touch sensor array is optimized for 16:9 LCD displays.
It provides an uniform, accurate and precise touch experience.

Has the highest touch resolution allowing for smaller detection distance between fingers.

Superior Touch Accuracy and Response

The touch sensor array is optimized for 16:9 LCD displays.

It provides an uniform, accurate and precise touch experience.

Has the highest touch resolution allowing for smaller detection distance between fingers.

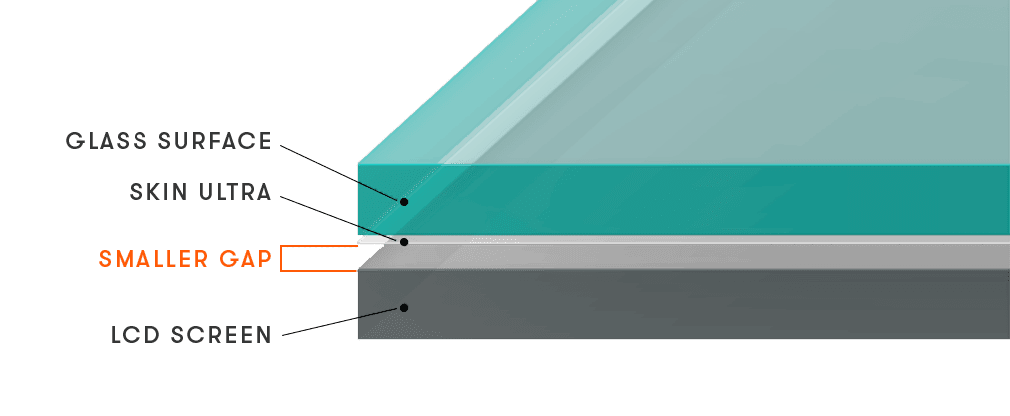

Highly Transparent Viewing Experience

Skin Ultra‘s touch sensor is designed for enhanced optical visibility. It features a clear and highly transparent touch sensor. Therefore, the display image quality will remain pristine and unaffected, providing an uncompromising viewing experience.

Highly Transparent Viewing Experience

Skin Ultra‘s touch sensor is designed for enhanced optical visibility. It features a clear and highly transparent touch sensor. Therefore, the display image quality will remain pristine and unaffected, providing an uncompromising viewing experience.

Fully Customizable Foil or Glass

DISPLAX multitouch sensors are wire-based sensor films designed to be used together with DISPLAX controllers and ready to be laminated in a non-conductive substract. They are UV and scratch resistant with the possibility of being fully customized:

Format

Variable width/height ratio

FPC tail position and length

Borders' width/height

Removable or permanent application

They can also be shipped already laminated with a glass of your choice and ready to be installed.

SKIN ULTRA is available in Foil or Glass

Fully Customizable Foil or Glass

DISPLAX multitouch sensors are wire-based sensor films designed to be used together with DISPLAX controllers and ready to be laminated in a non-conductive substract. They are UV and scratch resistant with the possibility of being fully customized:

Format

Variable width/height ratio

FPC tail position and length

Borders' width/height

Removable or permanent application

They can also be shipped already laminated with a glass of your choice and ready to be installed.

Use Cases

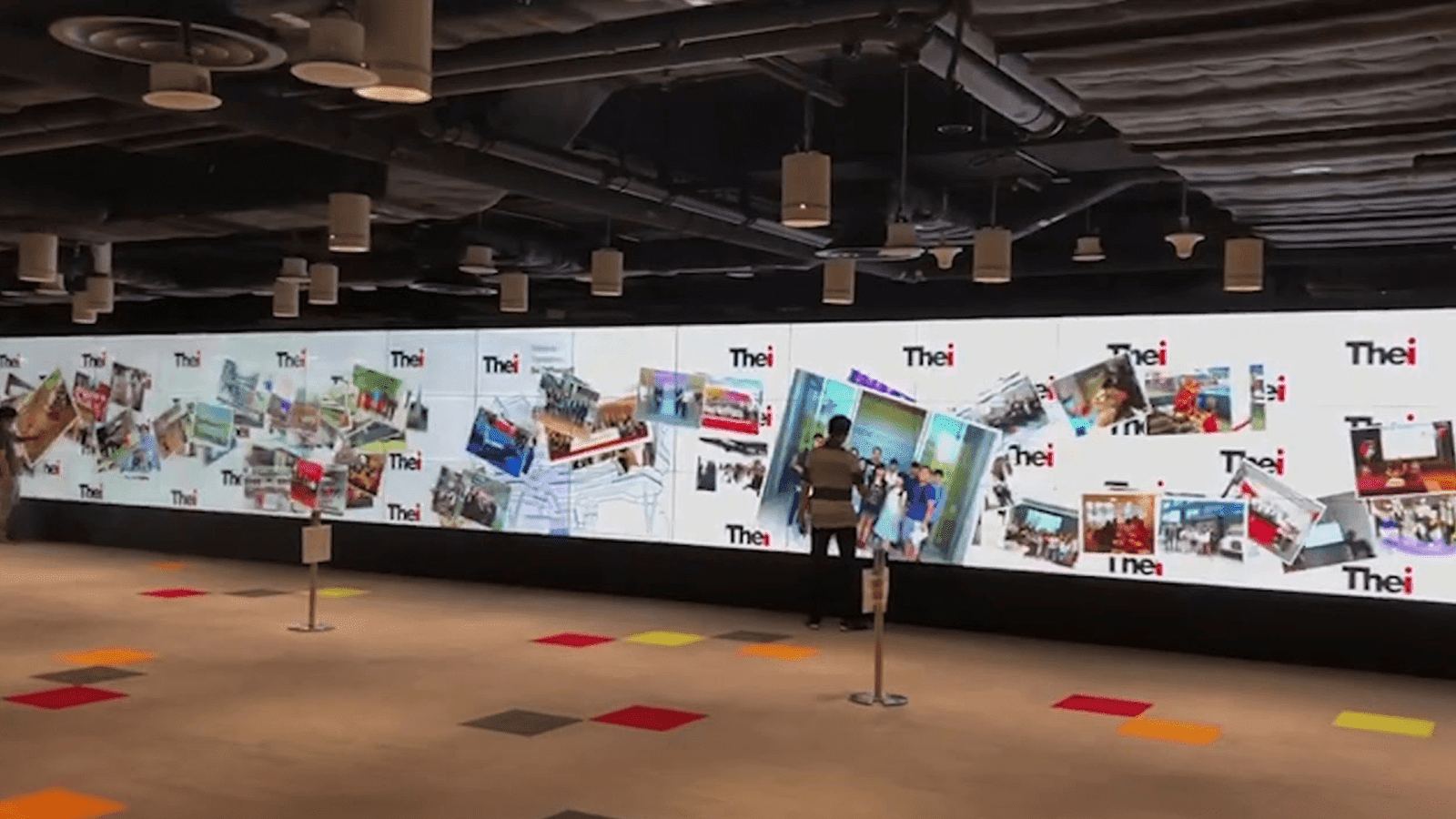

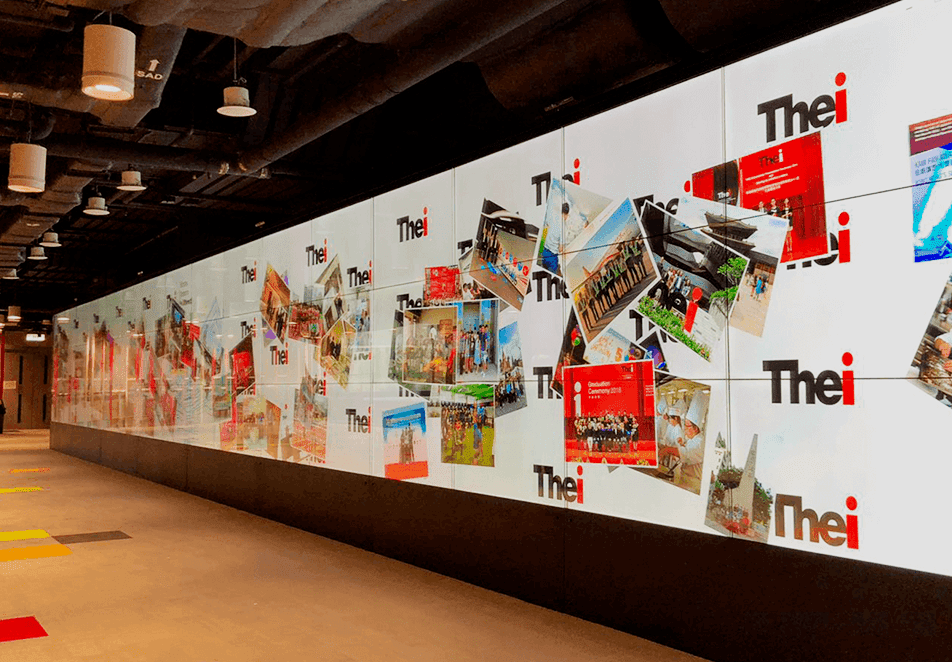

SKIN ULTRA massive interactive wall in Hong Kong

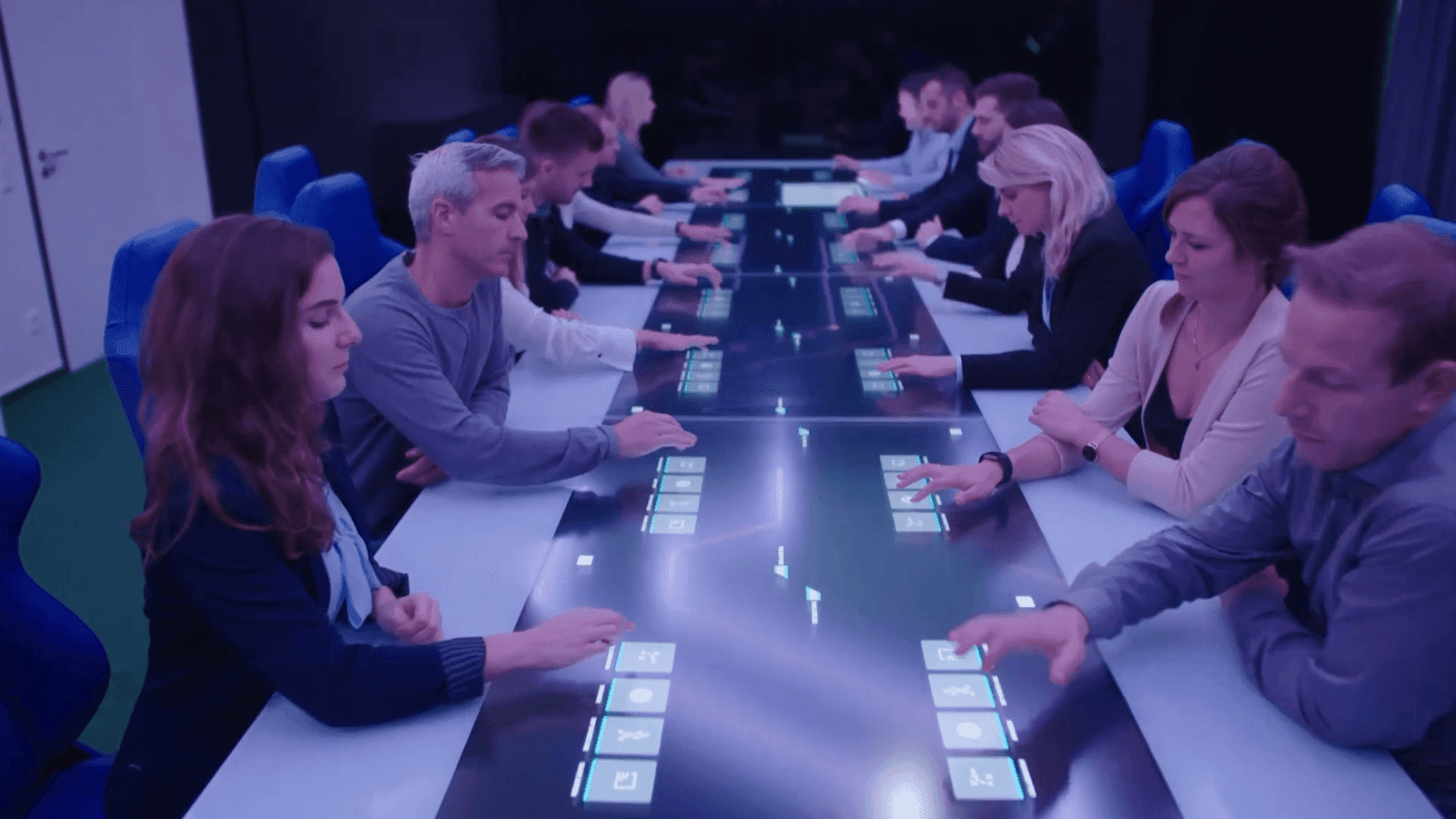

SKIN ULTRA multitouch table for collaboration in sports - Board room

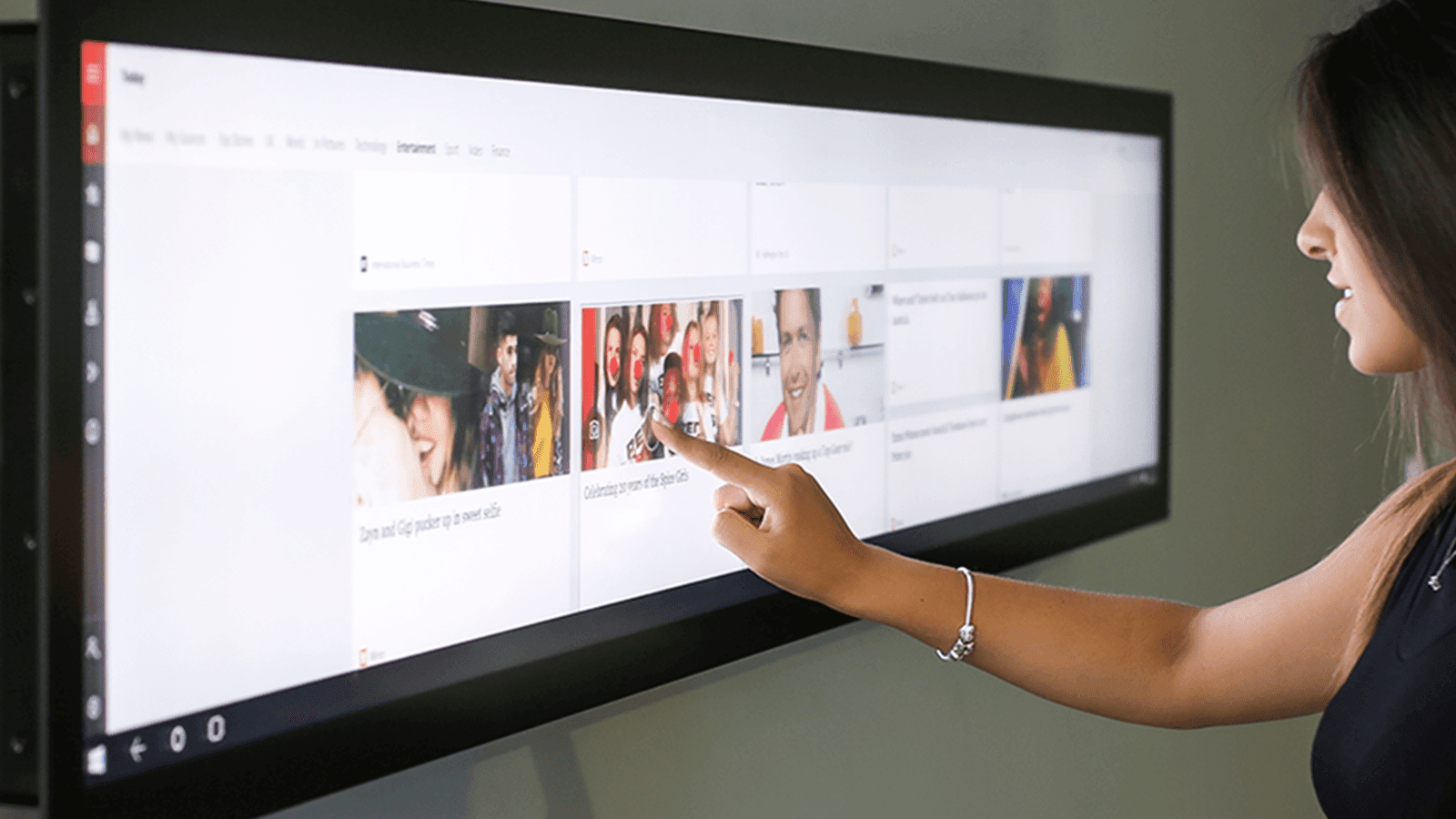

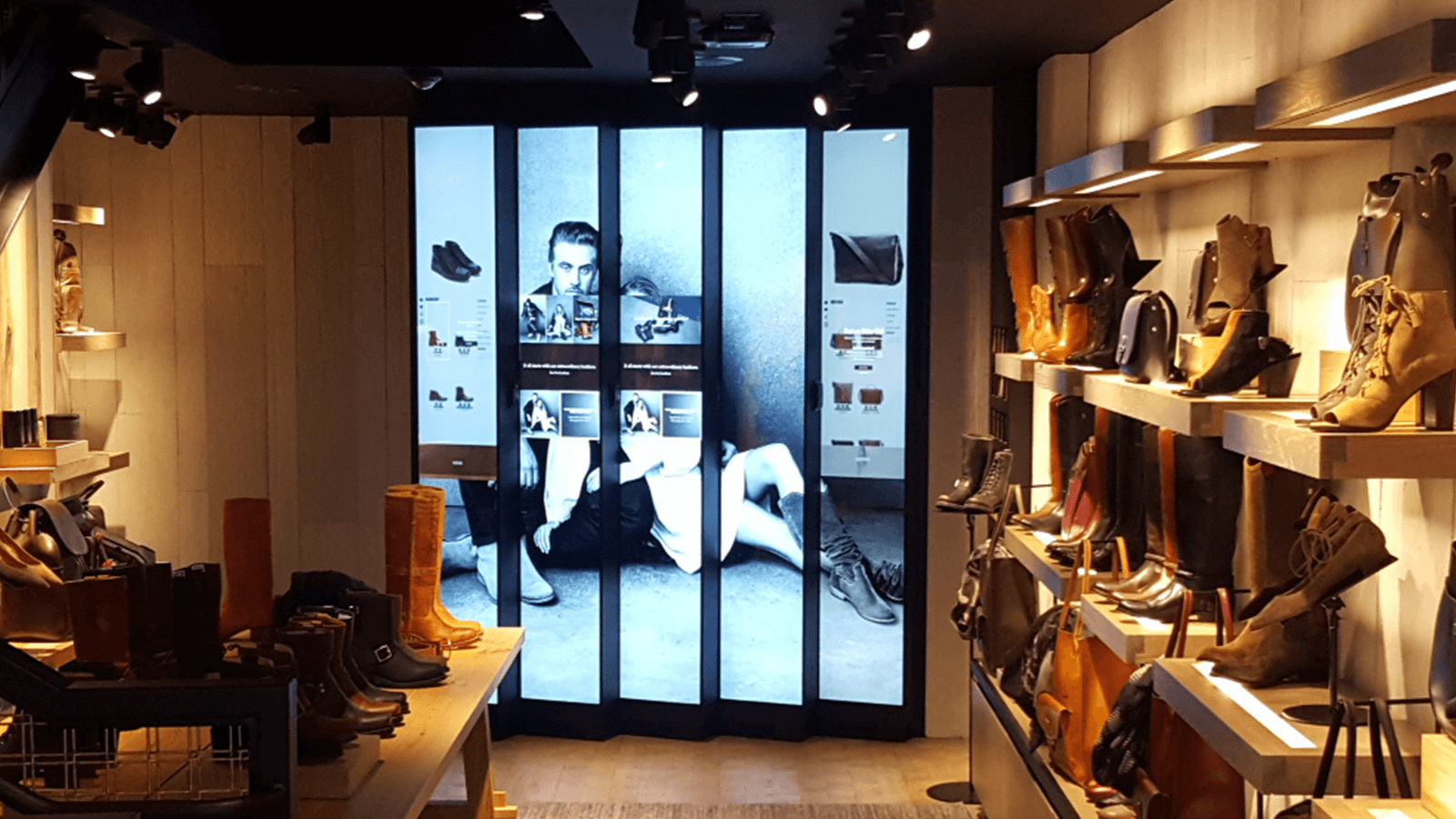

Stretched shape touchscreens used in retail store

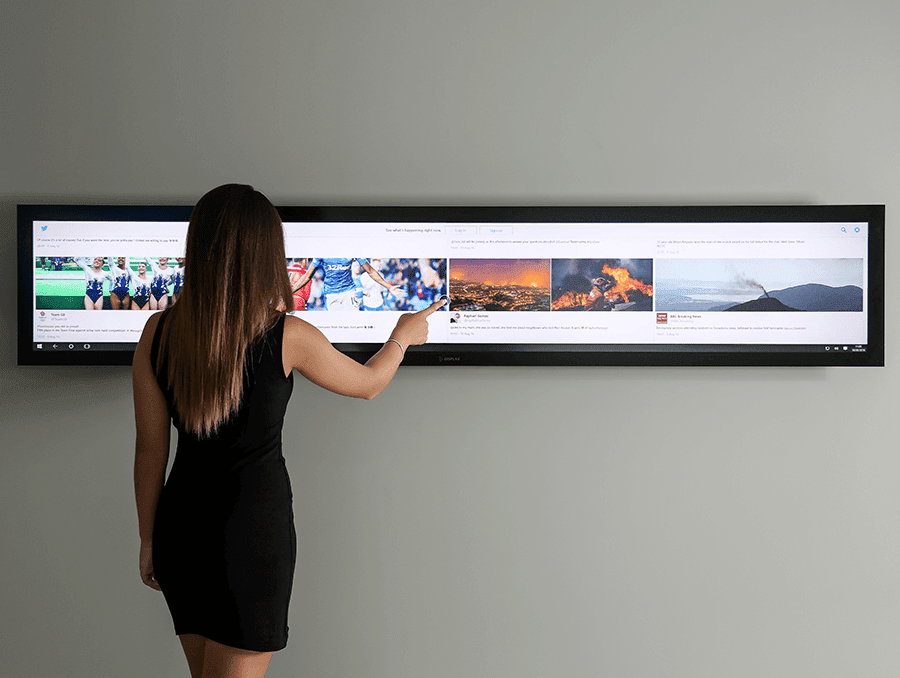

SKIN ULTRA is also available in stretched configuration

Use Cases

Typical Applications

Retail

Touch Kiosks

Interactive Digital Signage

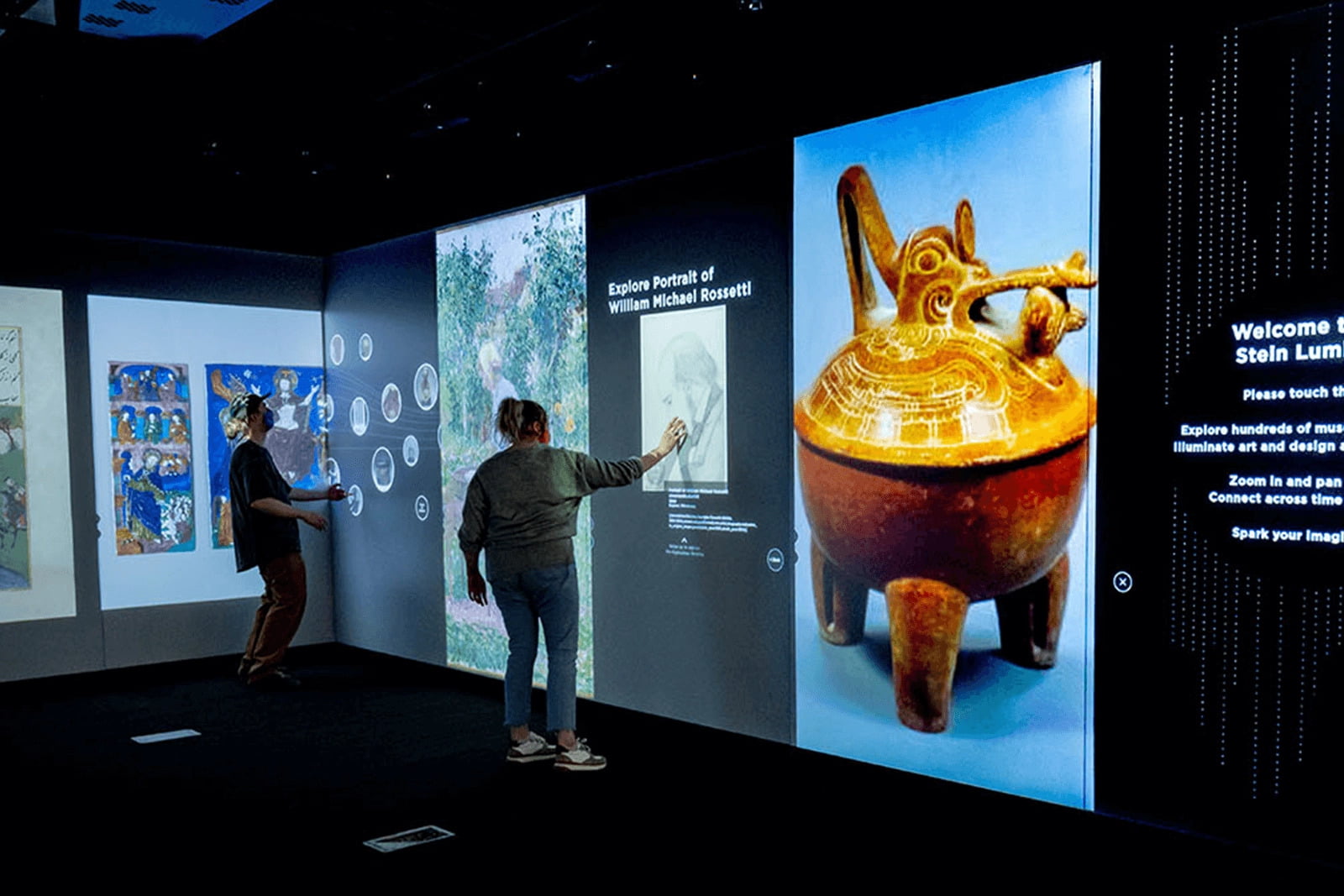

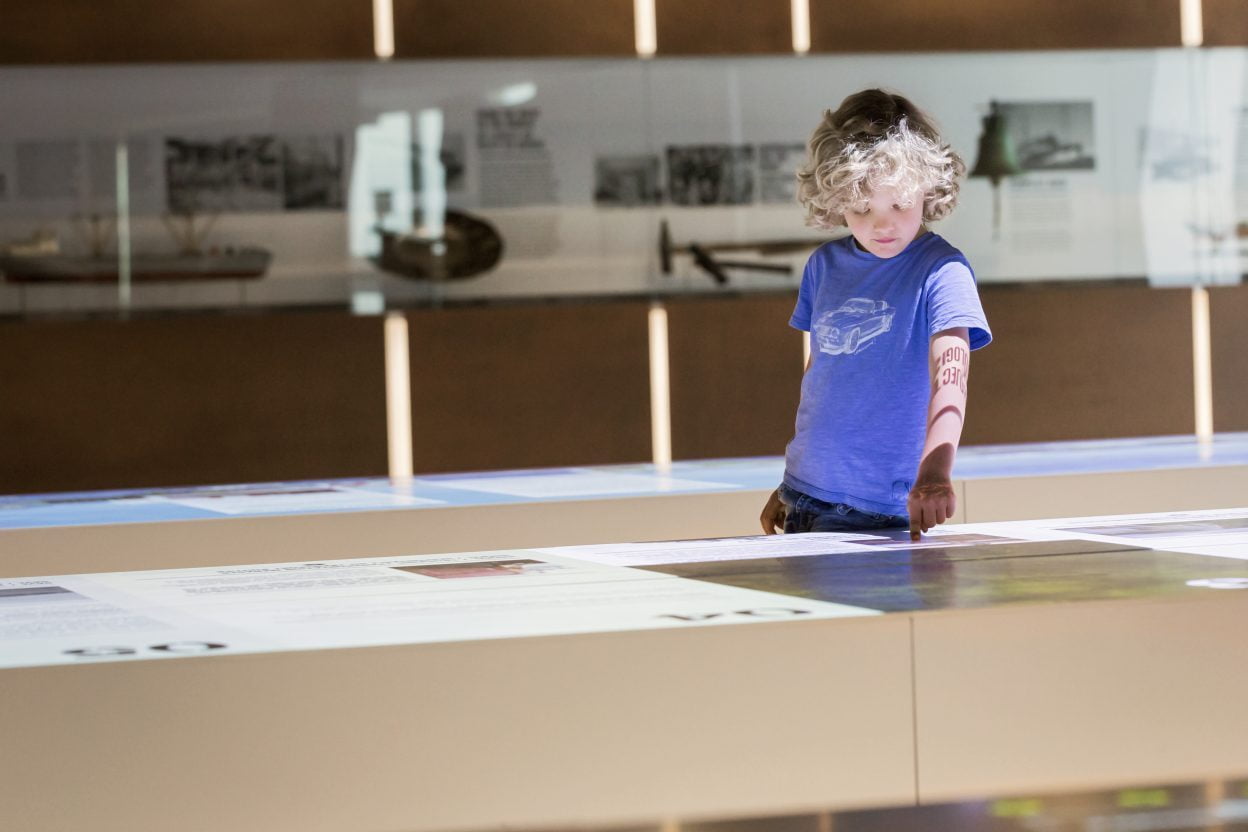

Museums

Experiences

Tables

Typical Applications

Retail

Touch Kiosks

Interactive Digital Signage

Museums

Experiences

Tables

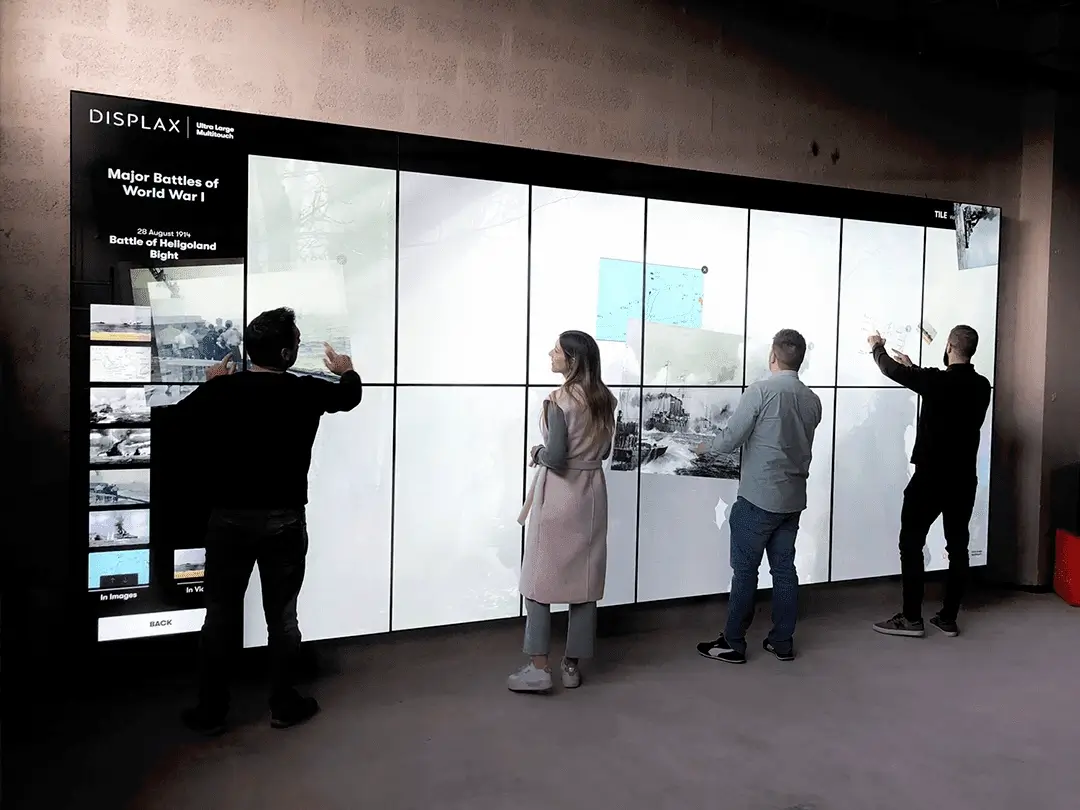

Infinity Design

The ultimate SKIN ULTRA feature

Have multiple Ultra Large Touch Foils side by side with the slimmest gap of 1 mm. Find a new way of having ultra large interactive experiences. SKIN ULTRA’s Infinity Feature allows you to have multiple Touch Sensors side by side with 1mm gap between them. It will reduce the cross talking noise between Touch Sensors to the point it will not affect the touch performance between them.

1mm gap between sensors

Unlimited sensors

Wall or Table

Infinity Design

The ultimate SKIN ULTRA feature

Have multiple Ultra Large Touch Foils side by side with the slimmest gap of 1 mm. Find a new way of having ultra large interactive experiences. SKIN ULTRA’s Infinity Feature allows you to have multiple Touch Sensors side by side with 1mm gap between them. It will reduce the cross talking noise between Touch Sensors to the point it will not affect the touch performance between them.

1mm gap between sensors

Unlimited sensors

Wall or Table

Compatible with
Object Recognition

Merge Physical and Digital by adding real objects to interactive tables. SKIN ULTRA recognizes different objects by using proprietary conductive tags.

Find out more about our OR solutions

Object Recognition

Compatible with
Object Recognition

Merge Physical and Digital by adding real objects to interactive tables. SKIN ULTRA recognizes different objects by using proprietary conductive tags.

Find out more about our OR solutions

Object Recognition

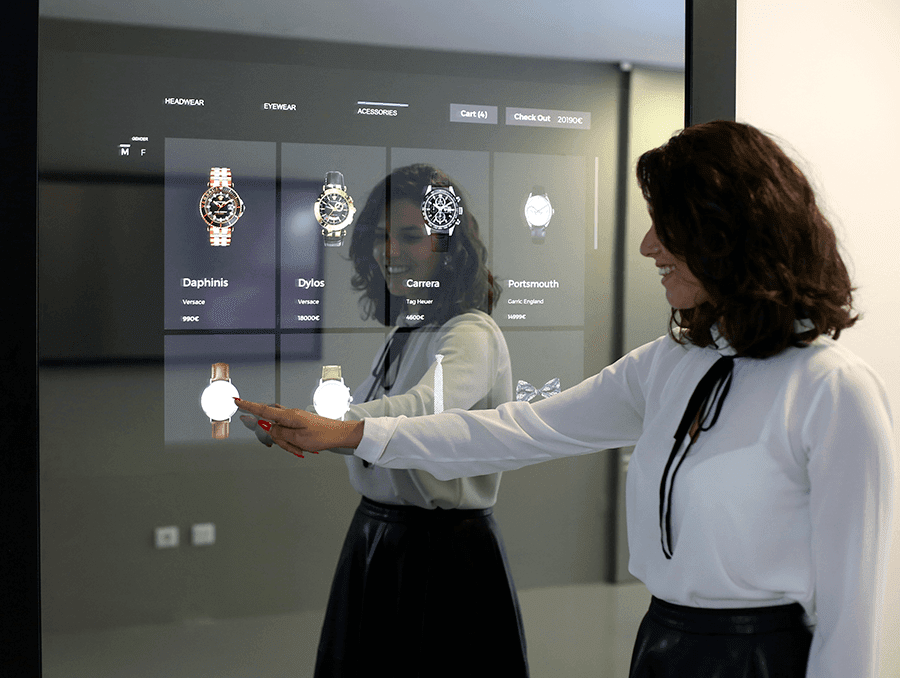

Touchscreen Mirrors

Interactive Mirrors are a new trend for fashion brands and retailers alike. SKIN ULTRA is the perfect solution for this application.

Stretched Touchscreens

Stretched displays allows unexpected designs or formats to create uncommon and impressive projects. Create projects that can offer a dramatic effect in a variety of new ways!

Touchscreen Mirrors

Interactive Mirrors are a new trend for fashion brands and retailers alike. SKIN ULTRA is the perfect solution for this application.

Stretched Touchscreens

Stretched displays allows unexpected designs or formats to create uncommon and impressive projects. Create projects that can offer a dramatic effect in a variety of new ways!

Want to speak to an expert?

Questions about pricing? Got an active project you’d like to discuss? If you want to learn more about SKIN ULTRA, let’s connect.

Get in touch with our Team

Want to speak to an expert?

Questions about pricing? Got an active project you’d like to discuss? If you want to learn more about SKIN ULTRA, let’s connect.

Get in touch with our Team

The Best Just Got Better

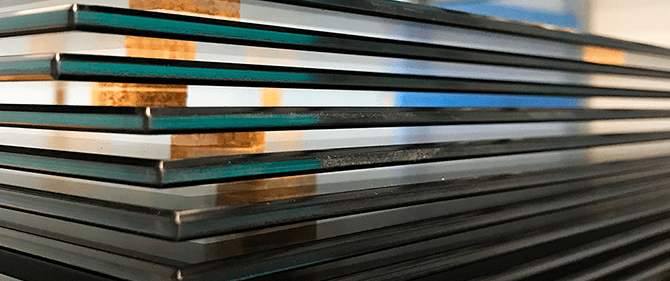

Special Touchscreen Glass

We offer high quality glass produced for touchscreen use that has passed tight quality requirements compared to regular glass. Have it already laminated on any size, framing or color to make the unit ready for assembling.

Glass Thickness

SKIN ULTRA can be laminated on glass up to 10mm thickness. Such a wide range of thickness fits the several requirements of different projects while benefiting from SKIN ULTRA’s superb touch performance.

The Best Just Got Better

Special Touchscreen Glass

We offer high quality glass produced for touchscreen use that has passed tight quality requirements compared to regular glass. Have it already laminated on any size, framing or color to make the unit ready for assembling.

Glass Thickness

SKIN ULTRA can be laminated on glass up to 10mm thickness. Such a wide range of thickness fits the several requirements of different projects while benefiting from SKIN ULTRA’s superb touch performance.

Ultimate Noise Filtering

XTR-Shield Plus

SKIN ULTRA has all of the latest DISPLAX’s proprietary touch noise filtering technology, know as XTR-Shield Plus. It filters the display noise that otherwise would affect the touch detection. Sensor can be placed closer than ever to the display, minimizing the parallax.

Ultimate Noise Filtering

XTR-Shield Plus

SKIN ULTRA has all of the latest DISPLAX’s proprietary touch noise filtering technology, know as XTR-Shield Plus. It filters the display noise that otherwise would affect the touch detection. Sensor can be placed closer than ever to the display, minimizing the parallax.

True HID Multitouch

Native single and multitouch support from OS

Windows

Chrome OS

Android

Raspberry PI

Ubuntu

webOS

macOS

Tizen OS

True HID Multitouch

Native single and multitouch support from OS

Windows

Android

Ubuntu

macOS

Chrome OS

Raspberry PI

webOS

Tizen OS

HID Mouse Emulation

Digital Signage Players

Windows Embedded

BrightSign

Smart Signage Platform

Spinetix

HID Mouse Emulation

Digital Signage Players

Windows Embedded

BrightSign

Smart Signage Platform

Spinetix

Compare our SKIN Touch Sensors

	SKIN ULTRA	SKIN ZEETO	SKIN FIT	SKIN DUALTOUCH
Positioning	Premium large-format performance	Harsh & demanding environments	Versatile performance & value	Entry-level & cost-effective
Size range	30"-135"	7"-24"	20"-135"	20"-105"
Simultaneous touches	Up to 100	Up to 10	Up to 40	Up to 2
Response time	5 ms	9 ms	5 ms	9 ms
High Resolution	✓	—	—	—
Aspect Ratio	16:9, 4:3, Custom formats	Custom designed sensor	16:9, 4:3, Custom formats	16:9, 4:3, Custom formats
Palm & Arm detection	✓ Palm & Arm detection	—	✓ Palm detection	—
Glass thickness	Up to 10 mm	Up to 20 mm	Up to 15 mm	Up to 15 mm
Touch Accuracy	0.26% of sensor diagonal	<1mm in 15” with 4mm glass	0.53% of sensor diagonal	0.80% of sensor diagonal
Finger Separation	1,30% of sensor diagonal	—	2,64% of sensor diagonal	4,01% of sensor diagonal
Outdoor use	✓*	✓	✓	✓
Designed for demanding environments	✓*	✓	✓	✓
Object Recognition	✓	—	✓	—
Custom shapes / formats	Fully customisable	Custom formats	Fully customisable	Custom formats
Adhesive	Permanent	Permanent or Removable	Permanent or Removable	Permanent or Removable
Substrate	Float Glass, Gorilla Glass	Glass and other non-conductive materials	Float Glass, Gorilla Glass	Float Glass, Gorilla Glass
Interface	HID	USB HID (default); SPI, I2C, SERIAL TTL/RS232 (on request); Industrial Connector (on request)	USB HID, UART-TTL	HID

* SKIN ULTRA: depends on the glass configuration; Extra Clear or Anti-Glare SKIN GLASS is suitable for demanding outdoor environments.

Compare our SKIN Touch Sensors

SKIN ULTRA

SKIN ZEETOSKIN FITSKIN DUALTOUCH

Positioning

Premium large-format performance

Harsh & demanding environmentsVersatile performance & valueEntry-level & cost-effective

Size range

30"-135"

7"-24"20"-135"20"-105"

Simultaneous touches

Up to 100

Up to 10Up to 40Up to 2

Response time

5 ms

9 ms5 ms9 ms

High Resolution

✓

———

Aspect Ratio

16:9, 4:3, Custom formats

Custom designed sensor16:9, 4:3, Custom formats16:9, 4:3, Custom formats

Palm & Arm detection

✓ Palm & Arm detection

—✓ Palm detection—

Glass thickness

Up to 10 mm

Up to 20 mmUp to 15 mmUp to 15 mm

Touch Accuracy

0.26% of sensor diagonal

<1mm in 15" with 4mm glass0.53% of sensor diagonal0.80% of sensor diagonal

Finger Separation

1,30% of sensor diagonal

—2,64% of sensor diagonal4,01% of sensor diagonal

Outdoor use

✓*

✓✓✓

Designed for demanding environments

✓*

✓✓✓

Object Recognition

✓

—✓—

Custom shapes / formats

Fully customisable

Custom formatsFully customisableCustom formats

Adhesive

Permanent

Permanent or RemovablePermanent or RemovablePermanent or Removable

Substrate

Float Glass, Gorilla Glass

Glass and other non-conductive materialsFloat Glass, Gorilla GlassFloat Glass, Gorilla Glass

Interface

HID

USB HID (default); SPI, I2C, SERIAL TTL/RS232 (on request); Industrial Connector (on request)USB HID, UART-TTLHID

* SKIN ULTRA: depends on the glass configuration; Extra Clear or Anti-Glare SKIN GLASS is suitable for demanding outdoor environments.

Specifications & Support

Technical Specifications

Download Spec File

Getting Started with SKIN

Learn More

Specifications & Support

Technical Specifications

Download Spec File

Getting Started with SKIN

Learn More

Certifications

At DISPLAX, we apply the best procedures to assure that our customers receive the best possible experience.

Conformité Européenne (CE)

Federal Communications Commission (FCC)

Restriction of Hazardous Substances (RoHS)

Certifications

At DISPLAX, we apply the best procedures to assure that our customers receive the best possible experience.

Conformité Européenne (CE)

Federal Communications Commission (FCC)

Restriction of Hazardous Substances (RoHS)

FAQs

What defines DISPLAX SKIN ULTRA touch foil?

SKIN ULTRA is DISPLAX’s premium PCAP touch sensor for large-format interactive displays. It delivers high-resolution multi-touch performance with up to 100 simultaneous touches, a 5 ms response time and 3D pressure detection, making it ideal for premium and immersive interactive experiences.

What are the primary use cases for SKIN ULTRA?

SKIN ULTRA is designed for museums and immersive experiences, premium retail and hospitality, corporate and meeting environments, interactive tables, magic mirrors, large-format video walls, showrooms, exhibitions and artistic installations.

What is the maximum screen size supported by SKIN ULTRA?

A: SKIN ULTRA is fully customisable from 30" to 135" and can be produced in special formats for mirrors, stretched displays, interactive tables and other large-format applications.

How many simultaneous touches does SKIN ULTRA support, and how fast is it?

SKIN ULTRA supports up to 100 simultaneous touches with a 5 ms response time. It also features high-resolution multi-touch and 3D pressure detection for precise and responsive interactive experiences.

Can SKIN ULTRA detect touches through thick or specialised glass?

SKIN ULTRA supports touch detection through customer-supplied protective glass substrates up to 20 mm thick. It can also be supplied as a pre-laminated SKIN GLASS module, available in Extra Clear, Anti-Glare and Mirror options, depending on the required glass type and thickness. When paired with suitable Extra Clear or Anti-Glare SKIN GLASS, it can also be used in demanding outdoor environments.

What makes SKIN ULTRA suitable for ultra-large and advanced interactive surfaces?

SKIN ULTRA features Infinity technology, allowing an unlimited number of sensors to be combined side-by-side with just a 1 mm gap, making it suitable for ultra-large surfaces and video walls. It also supports Object Recognition with Active TAGs, Passive TAGs and Scape X®, while XTR-Shield™ Plus provides advanced EMI noise filtering and increased stability in electrically noisy environments. The sensor is fully customisable, including format, aspect ratio, FPC tail position and length, border dimensions, and permanent or removable application.

What is the cost of a SKIN ULTRA touch foil?

SKIN ZEETO pricing varies based on sensor size, configuration, customisation requirements and order volume. For detailed pricing or distributor quotes, contact the DISPLAX sales team directly.

FAQs

What defines DISPLAX SKIN ULTRA touch foil?

SKIN ULTRA is DISPLAX’s premium PCAP touch sensor for large-format interactive displays. It delivers high-resolution multi-touch performance with up to 100 simultaneous touches, a 5 ms response time and 3D pressure detection, making it ideal for premium and immersive interactive experiences.

What are the primary use cases for SKIN ULTRA?

SKIN ULTRA is designed for museums and immersive experiences, premium retail and hospitality, corporate and meeting environments, interactive tables, magic mirrors, large-format video walls, showrooms, exhibitions and artistic installations.

What is the maximum screen size supported by SKIN ULTRA?

A: SKIN ULTRA is fully customisable from 30" to 135" and can be produced in special formats for mirrors, stretched displays, interactive tables and other large-format applications.

How many simultaneous touches does SKIN ULTRA support, and how fast is it?

SKIN ULTRA supports up to 100 simultaneous touches with a 5 ms response time. It also features high-resolution multi-touch and 3D pressure detection for precise and responsive interactive experiences.

Can SKIN ULTRA detect touches through thick protective or specialised glass?

SKIN ULTRA supports touch detection through customer-supplied protective glass substrates up to 20 mm thick. It can also be supplied as a pre-laminated SKIN GLASS module, available in Extra Clear, Anti-Glare and Mirror options, depending on the required glass type and thickness. When paired with suitable Extra Clear or Anti-Glare SKIN GLASS, it can also be used in demanding outdoor environments.

What makes SKIN ULTRA suitable for ultra-large and advanced interactive surfaces?

SKIN ULTRA features Infinity technology, allowing an unlimited number of sensors to be combined side-by-side with just a 1 mm gap, making it suitable for ultra-large surfaces and video walls. It also supports Object Recognition with Active TAGs, Passive TAGs and Scape X®, while XTR-Shield™ Plus provides advanced EMI noise filtering and increased stability in electrically noisy environments. The sensor is fully customisable, including format, aspect ratio, FPC tail position and length, border dimensions, and permanent or removable application.

What is the cost of a SKIN ULTRA touch foil?

SKIN ZEETO pricing varies based on sensor size, configuration, customisation requirements and order volume. For detailed pricing or distributor quotes, contact the DISPLAX sales team directly.
